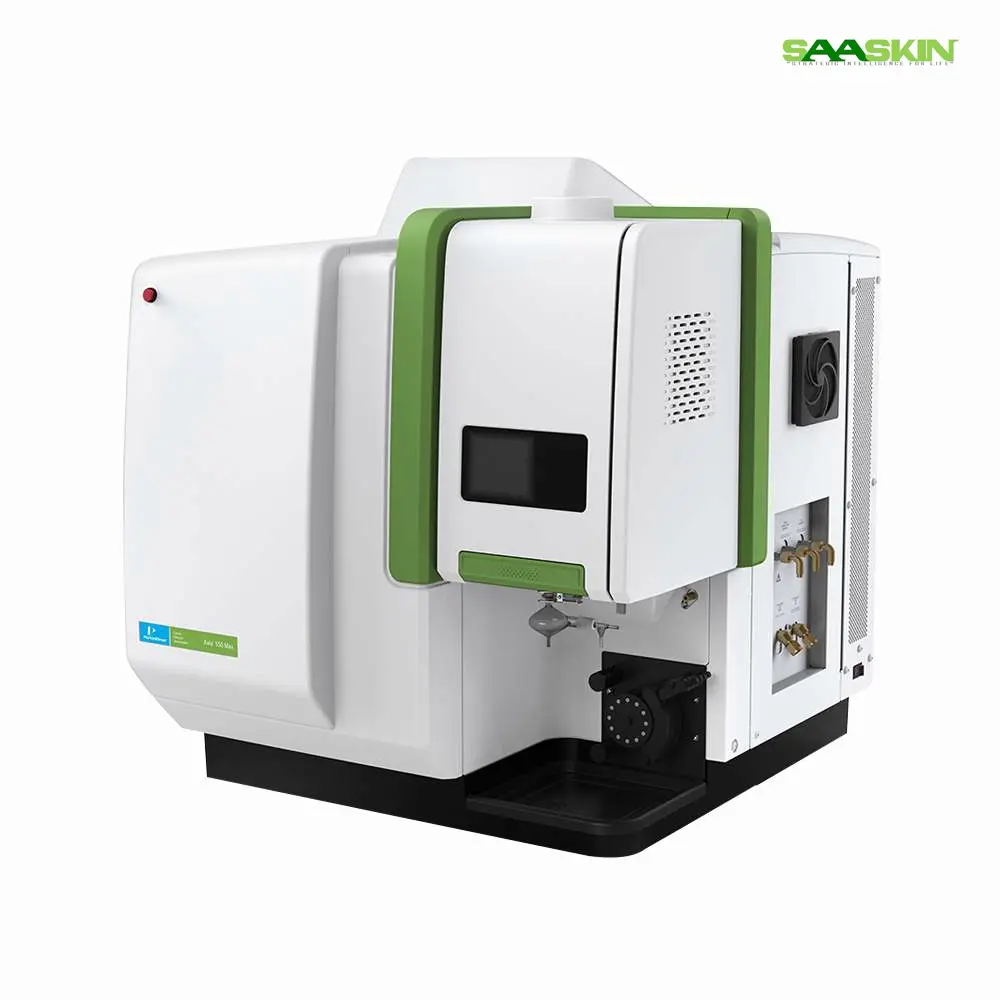

PerkinElmer Avio 550 Max ICP-OES Oils Configuration

PerkinElmer Avio 550 Max ICP-OES Oils Configuration

Get a Price/Quote

Product Details:

Model No Avio 550 Max ICP-OES Oils Configuration
Measurement Range ppb to % levels, dependent on matrix and analyte
Automation Grade Fully automated
Capacity Not specified (ICP-OES instruments generally do not have a sample capacity but support autosamplers and sample tubes; consult manufacturer for capacity details)
Feature High-throughput oil analysis, fast startup-ready (<10 minutes), minimized argon consumption, dual view, advanced interference management
Temperature Range Ambient operating: 1035 C
Power Source Mains electricity
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer Avio 550 Max ICP-OES Oils Configuration Price And Quantity

PerkinElmer Avio 550 Max ICP-OES Oils Configuration Product Specifications

Equipment Materials Corrosion-resistant alloys, stainless steel, quartz components, advanced polymers
Automation Grade Fully automated
Capacity Not specified (ICP-OES instruments generally do not have a sample capacity but support autosamplers and sample tubes; consult manufacturer for capacity details)
Feature High-throughput oil analysis, fast startup-ready (<10 minutes), minimized argon consumption, dual view, advanced interference management
Temperature Range Ambient operating: 1035 C
Type ICP-OES (Inductively Coupled Plasma Optical Emission Spectrometer), Oils Configuration
Power Source Mains electricity
Accuracy Trace to major element quantitation with excellent reproducibility (precision: <2% RSD typical)
Display Type Integrated touchscreen LCD panel
Voltage 200240 V AC
Frequency 50/60 Hz
Core Components RF generator, sample introduction system (oil configuration), spectrometer, detector, autosampler
Usage Elemental analysis of oil matrices; industrial, petrochemical, lube oil laboratories
Dimension (L*W*H) 119 cm x 66 cm x 86 cm (46.8 in x 26 in x 34 in)
Model No Avio 550 Max ICP-OES Oils Configuration
Measurement Range ppb to % levels, dependent on matrix and analyte
Weight Approx. 118 kg (260 lbs)

Product Description

Brand

PerkinElmer

Model

550

Capacity

Double-monochromator optical system

CAT No

N0810005

Application

Spectroscopy

The Avio 550 Max is a compact, fully simultaneous ICP-OES instrument, ideal for labs with high throughput requirements. It utilizes a vertical plasma and is engineered to handle even the most difficult, high-matrix samples without dilution, delivering productivity, performance and faster return on investment. Plus, Syngistix for ICP software provides an intuitive and smart environment with smart monitoring for real-time instrument and sample diagnostics as well as results viewing to easily track sample analysis, quality control, and internal standard performance to guarantee sample accuracy.

Optimized for Low-Level Oil Element Analysis

The Avio 550 Max ICP-OES excels in detection limits, delivering reliable low ppb sensitivity for most elements in oil matrices. Its oil-optimized nebulizer and vertical plasma torch enable high accuracy even when handling challenging, high-solid or viscous samples. This makes it the preferred solution for labs requiring strict analytical performance in lubricant analysis and wear metals monitoring.

Streamlined Operation and Maintenance

With tool-free maintenance and easy-access components, users benefit from minimized downtime. The fully automated system features an integrated touchscreen interface and supports automated sample introduction via peristaltic pump and autosampler, promoting efficient, high-throughput operation and consistent results.

Comprehensive Software and Data Management

Syngistix for ICP software is customizable for oil laboratories, offering intelligent workflow management and seamless compliance with ASTM and other international standards. Data can be exported directly in LIMS compatible, CSV, PDF, or XML formats, simplifying integration into laboratory information management systems.

FAQ's of PerkinElmer Avio 550 Max ICP-OES Oils Configuration:

Q: How does the Avio 550 Max ICP-OES ensure accurate detection of trace elements in oil samples?

A: The Avio 550 Max leverages specialized oil-optimized nebulizer technology and a vertically oriented, fully demountable torch. These features, combined with Echelle spectrometry and a segmented CCD array detector, allow for sensitive and precise measurement of trace elements down to low ppb levels in complex oil matrices.

Q: What sample introduction systems are included for oil analysis workflow?

A: The system includes a peristaltic pump, a smart rinse station, and supports optional autosamplers. This configuration guarantees consistent sample flow and reduces the risk of carryover, facilitating high-throughput oil analysis with minimal manual intervention.

Q: When should I perform maintenance on the Avio 550 Max, and how difficult is it?

A: Routine maintenance is simplified with tool-free access and easy-to-remove components. Regular checks and cleaning as specified in the user manual are recommended, ensuring ongoing performance without the need for specialized tools or extensive downtime.

Q: Where can the Avio 550 Max be deployed for optimal performance?

A: The instrument is ideal for deployment in industrial, petrochemical, and lubricant oil laboratories. It is designed to operate efficiently in ambient temperatures from 10-35C, accommodating diverse laboratory conditions commonly encountered in India and globally.

Q: What is the process for multi-element simultaneous determination using this system?

A: Samples are introduced using the automated system, then ionized in the plasma torch. The advanced Echelle spectrometer simultaneously measures multiple elements across a broad 165-900 nm wavelength range, providing comprehensive results for each sample cycle.

Q: How does the Avio 550 Max benefit laboratories conducting oil analysis?

A: Laboratories gain fast, accurate results with minimal argon consumption and rapid startup times. The system's compliance with global standards and robust data export capabilities streamline reporting and regulatory adherence, improving lab productivity and result reliability.
