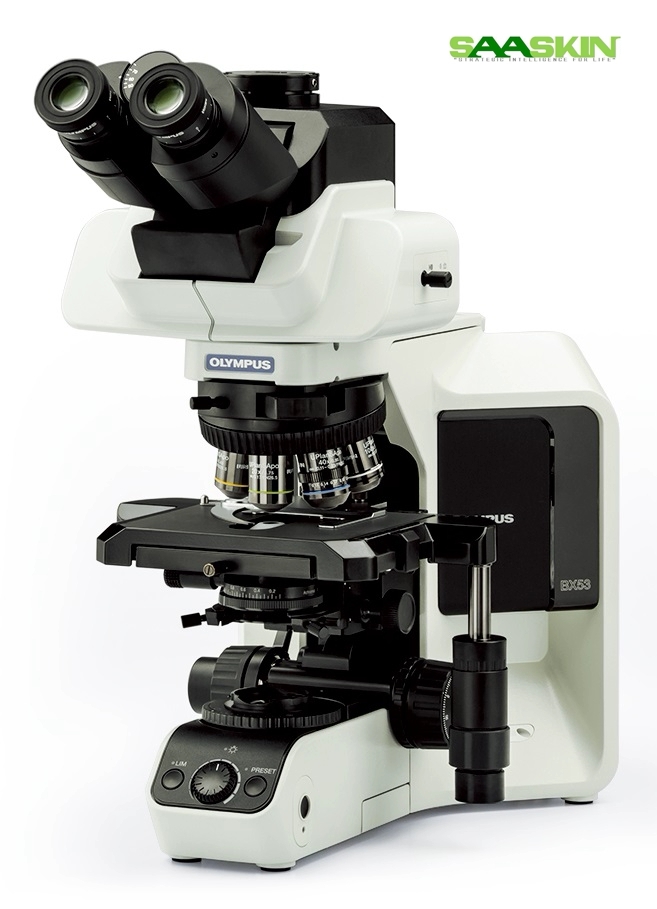

Olympus BX53 System Microscope

Get a Price/Quote

Product Details:

Application Brightfield, Darkfield, Phase Contrast, Fluorescence, Polarization
Color White / Black
Capacity Multiple viewing heads (single, dual, trinocular)
Classification Research Microscope
Material Metal body, High-grade optics
Product Type System Microscope
Dimension (L*W*H) Approx. 270 x 445 x 515 mm
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Olympus BX53 System Microscope Price And Quantity

Camera Port Trinocular observation tube for digital imaging
Nosepiece Revolving, quintuple/six-position
Illumination Control Intensity adjustable, preset switchable
Eyepiece Widefield 10x/22mm (High Eyepoint)
Accessories Multiple modules (polarizer, fluorescence, phase contrast sliders)
Light Source LED (Standard), 100W Halogen Lamp Compatible
Condenser Universal Abbe condenser, NA 0.9/1.25
Model BX53
Stage Rectangular mechanical stage, 76 x 50 mm movement range
Objective Lenses 4x, 10x, 20x, 40x, 100x (Plan Achromat, Plan Fluorite Series)
Focus System Coaxial coarse and fine focusing (with adjustable tension)

Olympus BX53 System Microscope Product Specifications

Voltage 100V240V AC, 50/60Hz
Usage Biological, Medical, Clinical Research
Classification Research Microscope
Color White / Black
Capacity Multiple viewing heads (single, dual, trinocular)
Application Brightfield, Darkfield, Phase Contrast, Fluorescence, Polarization
Operate Method Manual and Motorized Options
Weight Approx. 11.5 kg
Power Built-in universal power supply
Material Metal body, High-grade optics
Product Type System Microscope
Dimension (L*W*H) Approx. 270 x 445 x 515 mm

Camera Port Trinocular observation tube for digital imaging
Nosepiece Revolving, quintuple/six-position
Illumination Control Intensity adjustable, preset switchable
Eyepiece Widefield 10x/22mm (High Eyepoint)
Accessories Multiple modules (polarizer, fluorescence, phase contrast sliders)
Light Source LED (Standard), 100W Halogen Lamp Compatible
Condenser Universal Abbe condenser, NA 0.9/1.25
Model BX53
Stage Rectangular mechanical stage, 76 x 50 mm movement range
Objective Lenses 4x, 10x, 20x, 40x, 100x (Plan Achromat, Plan Fluorite Series)
Focus System Coaxial coarse and fine focusing (with adjustable tension)

Product Description

Brand Siemens

Model BX53

Configuration Bright Field, Fluorescence

CAT No BX53

Application Microscopy

The Olympus BX series of clinical microscopes offers a wide range of capabilities to meet the expanding microscope applications and observation methods, both for today and the future. Olympus's clinical microscopes, cameras and software provide significant improvements and technological advances in key araas, such as system flexibility, ergonomics and imaging. Each BX microscope platform is designed to enable users to fully benefit from Olympus's ergonomic approach and the high performance of the UIS2 optics, resulting in greater productivity and user comfort with uncompromising quality and versatility.

Advanced Optical Performance

Experience exceptional clarity and precision with the Olympus BX53, offering Plan Achromat and Plan Fluorite objective lenses. Widefield eyepieces with high eyepoint design enable comfortable, extended viewing. Its high-grade optics are built for demanding research tasks while minimizing optical aberrations, ensuring superior image quality across all applications.

Versatile Illumination Options

Equipped with a standard LED light source and compatible with 100W halogen lamps, the BX53 delivers consistent, adjustable illumination to suit any sample type. Intensity can be finely controlled and presets can be switched for repeatable conditions, empowering users to tailor lighting to brightfield, darkfield, phase contrast, fluorescence, or polarization microscopy.

Precision Mechanics and Ergonomics

The BX53 features a rectangular mechanical stage with a generous 76 x 50 mm movement range and a universal Abbe condenser (NA 0.9/1.25), providing flexibility for diverse specimen sizes and techniques. Smooth coaxial coarse and fine focusing with adjustable tension enhances user control, making this microscope as user-friendly as it is potent.

Digital Imaging & Modular Expansion

A trinocular observation tube enables seamless integration with digital cameras for high-quality imaging and documentation. Multiple modular accessories-including polarizers, phase contrast sliders, and fluorescence attachments-allow the BX53 to be tailored to a broad spectrum of research needs, supporting both current requirements and future expansion.

FAQ's of Olympus BX53 System Microscope:

Q: How do I switch between manual and motorized operation modes on the Olympus BX53?

A: The Olympus BX53 microscope is designed to accommodate both manual and motorized options, depending on the configuration you purchase. Switching modes involves adjusting the respective modules or components as instructed in the user manual. Consult the documentation provided with your system or contact your dealer for compatible motorized modules and installation guidance.

Q: What types of imaging applications can the BX53 System Microscope support?

A: The BX53 is designed for a wide variety of imaging methods, including brightfield, darkfield, phase contrast, fluorescence, and polarization. With its universal camera port and modular accessories, it is ideal for both standard and advanced biological, medical, and clinical research imaging tasks.

Q: When should I use the halogen lamp instead of the standard LED light source?

A: Use the halogen lamp when you require a continuous spectrum, particularly for certain fluorescence techniques or when color rendering is critical. The standard LED is energy-efficient and provides stable illumination for routine applications. Both lighting systems are intensity-adjustable to suit diverse experimental needs.

Q: Where can I find authorized suppliers or service centers for the BX53 microscope in India?

A: The Olympus BX53 is available through authorized dealers, distributors, exporters, manufacturers, suppliers, traders, and wholesalers throughout India. Visit the official Olympus website or contact your local Olympus representative for the nearest authorized sales and service centers.

Q: What is the process for attaching digital cameras to the trinocular observation tube?

A: To connect a digital camera, attach it directly to the trinocular port using a compatible camera adapter suited for your camera model. Ensure the camera is securely fastened, and adjust the optical path as necessary for proper light distribution. Refer to your camera and microscope manuals for detailed steps and recommended accessories.

Q: How does the BX53 benefit routine laboratory workflows?

A: The BX53 simplifies laboratory workflows with ergonomic controls, motorized and manual options, easy-to-use focusing, and modular expandability. Its widefield optics and digital imaging support enable efficient observation and documentation, making it highly effective for both routine analysis and advanced research.
