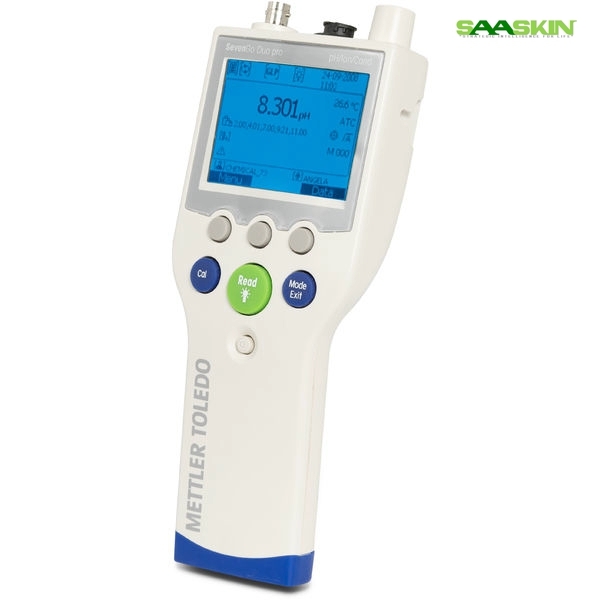

Mettler Toledo SevenGo Duo pH/Ion/DO meter SG98

Mettler Toledo SevenGo Duo pH/Ion/DO meter SG98

Get a Price/Quote

Product Details:

Dimension (L*W*H) 227 x 88 x 70 mm
Usage Measurement of pH, Ion concentration and Dissolved Oxygen in aqueous solutions
Material ABS Plastic Body
Classification Laboratory Instrument
Voltage 6V DC (with adapter)
Application Laboratory, Field analysis, Research, Quality control
Color Blue & White
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mettler Toledo SevenGo Duo pH/Ion/DO meter SG98 Price And Quantity

Data Storage 500 measurements
Automatic Endpoint Detection Yes
Electrode Input 2 channel input (BNC for pH/Ion, DIN for DO)
Display LCD, Backlit
Resolution (pH) 0.01 pH
Resolution (DO) 0.01 mg/L (up to 19.99 mg/L), 0.1 mg/L above
Calibration Multi-point Calibration (up to 5 points for pH)
Measuring Range (pH) -2.00 to 20.00 pH
Temperature Compensation Automatic or Manual
IP Rating IP67 waterproof and dustproof
Temperature Range -5.0 to 105.0 °C
Measuring Range (Ion) 0.01 mg/L to 9,999 mg/L (depending on electrode)
Connectivity RS232 or USB interface
Measuring Range (DO) 0.00 to 90.00 mg/L or 0.0 to 600.0% saturation

Mettler Toledo SevenGo Duo pH/Ion/DO meter SG98 Product Specifications

Product Type pH/Ion/DO Meter
Operate Method Handheld, Push Button Operation
Voltage 6V DC (with adapter)
Power AA Batteries or Power Adapter
Capacity Simultaneous measurement of 2 parameters
Weight Approx. 0.48 kg
Classification Laboratory Instrument
Material ABS Plastic Body
Usage Measurement of pH, Ion concentration and Dissolved Oxygen in aqueous solutions
Color Blue & White
Dimension (L*W*H) 227 x 88 x 70 mm
Application Laboratory, Field analysis, Research, Quality control

Data Storage 500 measurements
Automatic Endpoint Detection Yes
Electrode Input 2 channel input (BNC for pH/Ion, DIN for DO)
Display LCD, Backlit
Resolution (pH) 0.01 pH
Resolution (DO) 0.01 mg/L (up to 19.99 mg/L), 0.1 mg/L above
Calibration Multi-point Calibration (up to 5 points for pH)
Measuring Range (pH) -2.00 to 20.00 pH
Temperature Compensation Automatic or Manual
IP Rating IP67 waterproof and dustproof
Temperature Range -5.0 to 105.0 °C
Measuring Range (Ion) 0.01 mg/L to 9,999 mg/L (depending on electrode)
Connectivity RS232 or USB interface
Measuring Range (DO) 0.00 to 90.00 mg/L or 0.0 to 600.0% saturation

Product Description

Brand Mettler Toledo

Model SG98

Capacity -2 19.999

CAT No 51302661

Application pH Meter

A high precision dual-channel pH/ optical DO meter for simultaneous analysis of two electrochemical parameters. Easy text guided operation.

Advanced Multi-Parameter Measurement

The SevenGo Duo SG98 is engineered to deliver high-precision analysis of pH, ion concentration, and dissolved oxygen. With dedicated dual channels-BNC for pH/Ion and DIN for DO-users can simultaneously monitor two parameters, saving time and enhancing data accuracy during critical laboratory or fieldwork.

Designed for Convenience and Durability

This handheld meter features a rugged ABS body and IP67-rated waterproof and dustproof protection, ensuring reliable performance in both controlled laboratory settings and challenging outdoor conditions. Its ergonomic design, lightweight build, and intuitive push-button operation promote ease of use during extended measurement sessions.

Comprehensive Data Handling

Equipped with a backlit LCD and storage for 500 measurements, the SG98 enables effective tracking and review of data. Connectivity via RS232 or USB interfaces supports seamless data transfer to computers for further analysis, making it suitable for documentation in research and quality assurance workflows.

FAQ's of Mettler Toledo SevenGo Duo pH/Ion/DO meter SG98:

Q: How can the SevenGo Duo SG98 measure two parameters at once?

A: The SG98 is equipped with dual-channel inputs (BNC for pH/Ion, DIN for DO), allowing you to connect appropriate electrodes and measure any two parameters simultaneously, such as pH and dissolved oxygen, or pH and ion concentration.

Q: What is the process for calibrating the pH function on the SG98 meter?

A: Calibration is performed using up to 5 points with standardized buffer solutions. The automatic calibration guides you through each step, ensuring high accuracy and reliable results in your pH measurements.

Q: Where can the SG98 meter be used, given its design and features?

A: The SG98's IP67 waterproof and dustproof rating, along with its ABS plastic housing, make it suitable for both laboratory and field applications. It is ideal for research, quality control, field analysis, and educational purposes.

Q: When should I use automatic versus manual temperature compensation?

A: Use automatic temperature compensation when measuring in environments with fluctuating temperatures for optimal accuracy. Manual adjustment is beneficial in controlled conditions where specific temperature values are required for specialized analyses.

Q: What are the benefits of the large data storage capacity and connectivity options?

A: With the ability to store up to 500 measurement entries and interfaces for RS232 or USB, the SG98 facilitates easy data management, backup, and transfer-streamlining reporting, research documentation, and compliance with quality protocols.

Q: How do I power and operate the SG98 meter in different environments?

A: The device can be powered by AA batteries for portable use or connected via a 6V DC power adapter in laboratory settings. Simple push-button operation ensures quick setup and ease of use, wherever your analysis takes place.
