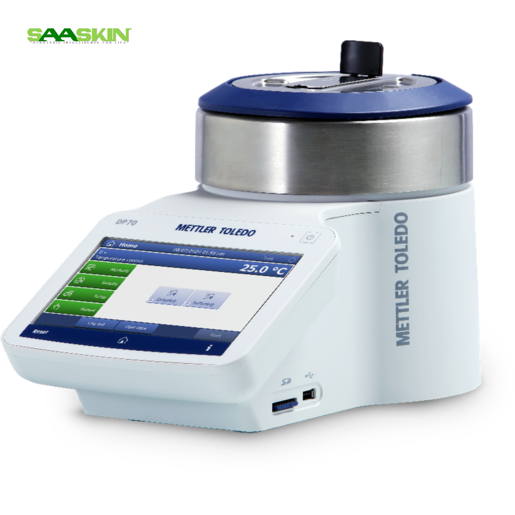

Mettler Toledo Dropping Point System DP70

Mettler Toledo Dropping Point System DP70

Get a Price/Quote

Product Details:

Automation Grade Automatic
Feature Automatic video detection, intuitive operation, guided method programming
Power Source AC Power
Capacity 2 samples per measurement (dual sample) system
Voltage 100240 V AC
Temperature Range Room temperature to 400C
Core Components Heating block, camera, temperature sensor, touchscreen interface
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mettler Toledo Dropping Point System DP70 Price And Quantity

Camera Resolution High-definition digital camera for accurate observation
Interface Ports USB, Ethernet connectivity
Data Storage Internal memory and external data export
Calibration Automated with built-in calibration routines
Compliance Meets ASTM D3954, ASTM D3461, ISO 4625, and other relevant standards
Software LabX Dropping Point software support for data analysis and management
Heating Rate Fully programmable, typically 0.210C/min
Languages Supported Multilingual user interface
Ambient Operating Conditions 15C to 35C, 2080% relative humidity (non-condensing)
Accessories Comes with calibration substances, sample holders, accessories kit
Sample Throughput High throughput with dual testing
User Management Protected user access levels for secure operation

Mettler Toledo Dropping Point System DP70 Product Specifications

Dimension (L*W*H) 295 x 235 x 240 mm
Automation Grade Automatic
Feature Automatic video detection, intuitive operation, guided method programming
Power Source AC Power
Type Dropping Point System
Capacity 2 samples per measurement (dual sample) system
Voltage 100240 V AC
Display Type 7-inch color touchscreen LCD
Temperature Range Room temperature to 400C
Usage Laboratory determination of dropping and softening points (oils, fats, resins, polymers, etc.)
Core Components Heating block, camera, temperature sensor, touchscreen interface
Frequency 50/60 Hz
Model No DP70
Accuracy 0.2C
Measurement Range Up to 400C
Weight Approx. 7 kg
Equipment Materials Stainless steel and high-quality polymer housing

Camera Resolution High-definition digital camera for accurate observation
Interface Ports USB, Ethernet connectivity
Data Storage Internal memory and external data export
Calibration Automated with built-in calibration routines
Compliance Meets ASTM D3954, ASTM D3461, ISO 4625, and other relevant standards
Software LabX Dropping Point software support for data analysis and management
Heating Rate Fully programmable, typically 0.210C/min
Languages Supported Multilingual user interface
Ambient Operating Conditions 15C to 35C, 2080% relative humidity (non-condensing)
Accessories Comes with calibration substances, sample holders, accessories kit
Sample Throughput High throughput with dual testing
User Management Protected user access levels for secure operation

Product Description

Brand Mettler Toledo

Model DP 70

Capacity RT 400C

CAT No 30578107

Application Thermal Analysis

The DP70 offers simultaneous dropping and softening point determination of two samples up to a maximum temperature of 752F/400C.

Exact Measurement for Demanding Laboratories

Engineered for efficiency, the DP70 ensures high accuracy (0.2C) with its automatic video detection and advanced temperature control. Laboratories benefit from dual-sample testing, increasing productivity and producing consistent, standardized results in compliance with ASTM and ISO methods.

Seamless Operation with Advanced Connectivity

Featuring USB and Ethernet ports, the DP70 facilitates effortless data export and integration into your laboratory's information system. Automated calibration, internal memory, and compatibility with LabX software simplify workflow, data management, and regulatory compliance.

User-Friendly Interface, Robust Construction

The DP70 features a vibrant 7-inch color touchscreen and multilingual support for global usability. Housed in durable stainless steel and polymers, it is designed to withstand daily laboratory demands, while protected user access ensures secure, reliable operation.

FAQ's of Mettler Toledo Dropping Point System DP70:

Q: How does the DP70 ensure accurate measurement of the dropping point?

A: The DP70 uses a high-definition digital camera along with automatic video detection and a precise temperature control system to identify the exact dropping or softening point with an accuracy of 0.2C, ensuring repeatable and reliable results every time.

Q: What substances can be tested using the DP70 Dropping Point System?

A: The DP70 is designed for testing the dropping and softening points of various substances like oils, fats, resins, polymers, and similar materials, making it versatile for chemical, food, and material science laboratories.

Q: When should calibration of the DP70 be performed, and how is it done?

A: Regular calibration is recommended to maintain accuracy. The DP70 features built-in automated calibration routines and comes with calibration substances. Calibration can be initiated easily via the touchscreen interface, following on-screen prompts.

Q: Where can data from the DP70 be exported or stored?

A: Data can be saved in the DP70's internal memory, exported via USB or Ethernet connectivity, or managed and analyzed using LabX Dropping Point software. This enables seamless integration with laboratory information management systems.

Q: What is the process for conducting a test using the DP70 system?

A: Simply place up to two samples in the holders, select or program your method using the touchscreen, and start the automated measurement. The camera and temperature sensor will monitor the process, and results are automatically recorded and can be exported or analyzed.

Q: How does the DP70 benefit laboratory workflows?

A: With dual-sample capability, automated procedures, guided programming, and high throughput, the DP70 increases productivity and consistency. Compliance with standards and comprehensive data management options further streamline laboratory operations.

Q: What ambient conditions are required for operating the DP70 Dropping Point System?

A: The DP70 operates optimally in environments with temperatures between 15C and 35C and 20-80% relative humidity (non-condensing), ensuring longevity and dependable performance.
