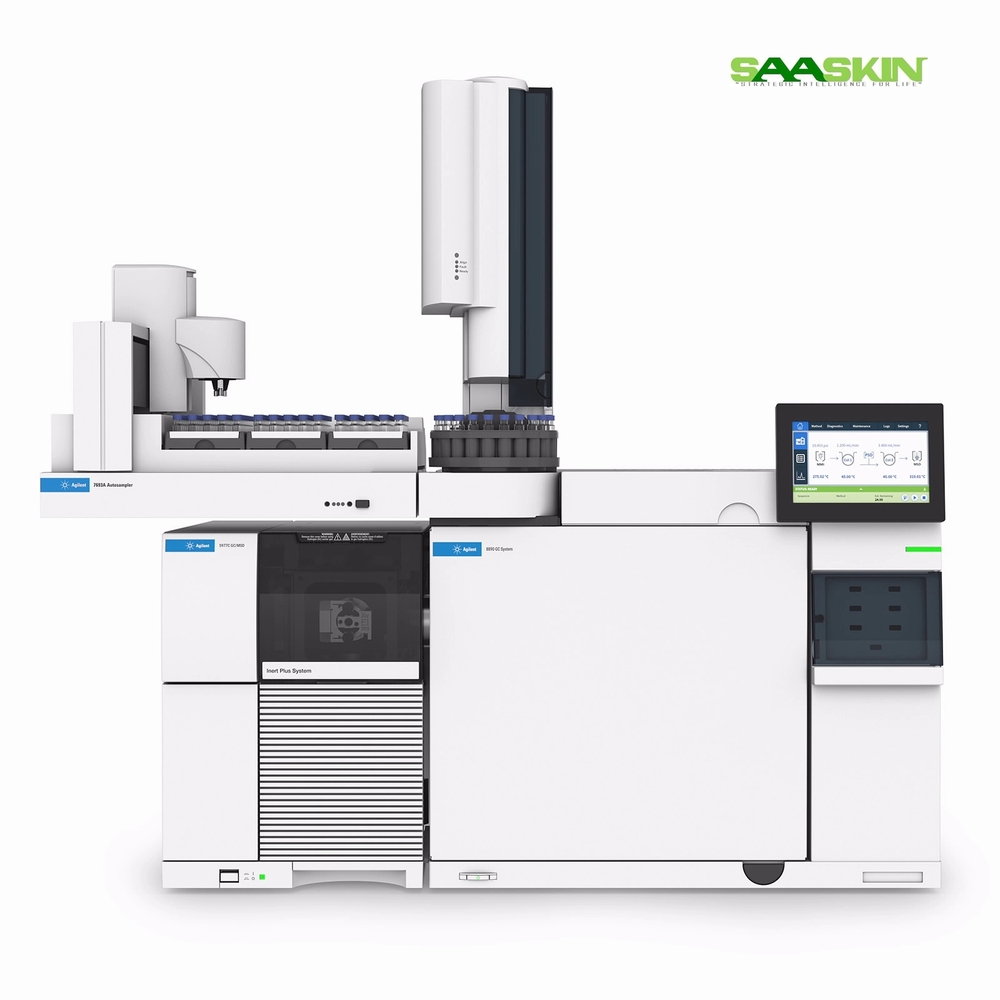

Agilent Technologies 5977C MSD Bundle with 8860 GC Mass Spectrometer Agilent Technologies 5977C MSD Bundle with 8860 GC Mass Spectrometer Agilent Technologies 5977C MSD Bundle with 8860 GC Mass Spectrometer
Agilent Technologies 5977C MSD Bundle with 8860 GC Mass Spectrometer
Agilent Technologies 5977C MSD Bundle with 8860 GC Mass Spectrometer Agilent Technologies 5977C MSD Bundle with 8860 GC Mass Spectrometer

Agilent Technologies 5977C MSD Bundle with 8860 GC Mass Spectrometer

Get a Price/Quote

Product Details:

  • Core Components 5977C Mass Selective Detector, 8860 Gas Chromatograph, electronic pneumatic control, vacuum pump.
  • Voltage 100240 VAC.
  • Power Source AC Mains
  • Accuracy High quantitative and qualitative reproducibility with mass accuracy typically <0.1 u.
  • Model No 5977C MSD Bundle with 8860 GC
  • Automation Grade Automatic
  • Measurement Range 1 to 1050 m/z (standard, extendable with options).
  • Click to View more
Request to Call Back Send Inquiry
X

Agilent Technologies 5977C MSD Bundle with 8860 GC Mass Spectrometer Price And Quantity

Agilent Technologies 5977C MSD Bundle with 8860 GC Mass Spectrometer Product Specifications

  • 5977C Mass Selective Detector, 8860 Gas Chromatograph, electronic pneumatic control, vacuum pump.
  • Quadrupole GC/MSD system.
  • 100240 VAC.
  • LCD graphical display with keypad on GC, software-based system control on PC.
  • AC Mains
  • High quantitative and qualitative reproducibility with mass accuracy typically <0.1 u.
  • GC ~30 kg, MSD ~41 kg.
  • Comprehensive identification and quantification of organic compounds in environmental, chemical, food safety, and pharmaceutical applications.
  • Automatic
  • 5977C MSD Bundle with 8860 GC
  • 8860 GC: 52 x 54 x 49 cm, 5977C MSD: 54 x 34 x 40 cm.
  • 1 to 1050 m/z (standard, extendable with options).
  • Oven: Ambient +4C to 450C, MS source: up to 350C.
  • Standard configuration supports typical sample capacities for routine GC/MS analysis; consult factory for special requirements.
  • Corrosion-resistant steel chassis, inert sample pathway components.
  • High sensitivity, inert flow path, automated tuning, advanced signal processing, integrated touchscreen and remote operation capabilities.
  • 50/60 Hz.
  • Triple-Axis Detector (TAD), high-sensitivity for low-level analyte detection
  • Automated tune, data analysis, remote monitoring, spectral libraries
  • Automated liquid or headspace sampling (auto-injector compatible)
  • Advanced Electronic Pneumatic Control (EPC)
  • Temperature 15C35C, Humidity <80% RH
  • Electron Impact (EI); Chemical Ionization (CI, Optional)
  • Unit mass resolution across full mass range
  • Up to 120C/min
  • LAN, USB (for PC connection), GPIB (optional for legacy peripherals)
  • Leak check, electronic diagnostics, automatic shutdown, safety interlocks
  • Split/splitless, On-column, Programmable Temperature Vaporization (PTV, optional)
  • Windows 10 and above
  • Turbomolecular pump with roughing pump
  • MassHunter Workstation or OpenLAB CDS for acquisition, processing, reporting
  • <68 dB(A) during normal operation

Product Description

Brand                     Agilent Technologies

Model                     5977C

Capacity                m/z 0.6-1091

CAT No                  G7082CW

Application           Spectroscopy

The Agilent 5977C GC/MSD is a routine and reliable workhorse for environmental impurities and food testing, chemical and petrochemical analysis, as well as the analysis of forensic and pharmaceutical compounds. With over 50 years of leadership in gas chromatography/mass spectrometry, the 5977C single quadrupole GC/MS is built on the legacy of a series of trusted GC/MS instruments.




Unmatched Analytical Performance

The 5977C MSD Bundle, featuring the 8860 Gas Chromatograph, ensures precise mass spectrometry analysis with unit mass resolution across 1-1050 m/z and brilliant accuracy (<0.1 u). The robust quadrupole design, triple-axis detection, and automated tuning facilitate the reliable detection and quantification of trace-level analytes, empowering laboratories to meet both routine and complex analytical challenges.


Flexible Sample Introduction & High Throughput

Engineered for versatility, the system supports multiple injection modes-split/splitless, on-column, and optional PTV-alongside automated liquid or headspace sampling. It accommodates diverse workflows in environmental testing, food safety assurance, or pharmaceutical development, increasing throughput and minimizing manual intervention. Advanced Electronic Pneumatic Control (EPC) ensures precise carrier gas flow and optimal separations.


Ease of Operation & Advanced Safety Features

Run your analyses seamlessly with the integrated LCD display, keypad, and fully automated data acquisition through the MassHunter or OpenLAB CDS software. Safety is paramount, with features such as leak detection, electronic diagnostics, automatic shutdown, and interlocks. Remote monitoring allows for streamlined laboratory management, reducing downtime and safeguarding both users and instruments.

FAQ's of Agilent Technologies 5977C MSD Bundle with 8860 GC Mass Spectrometer:


Q: How does the Agilent 5977C MSD Bundle with 8860 GC enhance analytical accuracy and sensitivity?

A: The 5977C MSD Bundle utilizes a triple-axis detector for heightened sensitivity, unit mass resolution for discriminative analysis, and automated tuning for reproducible results. The inert flow path minimizes sample loss, while advanced electronic pneumatic control (EPC) guarantees precise carrier gas delivery, collectively ensuring high quantitative and qualitative accuracy, even for low-level analytes.

Q: What sample introduction and injection modes are available with this GC/MS system?

A: This system supports multiple sample injections, including split/splitless, on-column, and programmable temperature vaporization (PTV, optional) modes, along with compatibility for automated liquid or headspace sampling using auto-injectors. Such flexibility accommodates varied sample types and application needs.

Q: When should I use Electron Impact (EI) or Chemical Ionization (CI) with the 5977C MSD?

A: Electron Impact (EI) is the standard method for most routine analyses, providing reliable fragmentation and well-established spectral libraries. Chemical Ionization (CI), available as an option, is recommended when softer ionization is required to detect molecular ions or reduce fragmentation in sensitive compounds.

Q: Where can the system be installed, and what environmental conditions must be met?

A: The 5977C MSD Bundle can be installed in standard laboratory environments. It operates optimally at ambient temperatures from 15C to 35C and humidity below 80% RH. The system must be powered by AC mains (100-240 VAC) and positioned where safe ventilation and minimal vibration are ensured.

Q: What is the typical process for acquiring and processing data with this system?

A: Samples are introduced automatically or manually, and the GC separates compounds, which are then analyzed by the MSD. Data acquisition, processing, and reporting are managed via Agilent's MassHunter Workstation or OpenLAB CDS software, offering automated tune, data analysis, spectral libraries, comprehensive reporting, and remote monitoring.

Q: How does the system support laboratory automation and remote operations?

A: Automation is enabled via automated sampling, electronic pneumatic control, and fully software-driven workflows. Users can monitor, control, and troubleshoot the system remotely using MassHunter or OpenLAB CDS, improving efficiency and reducing hands-on maintenance time.

Q: What benefits does the Agilent 5977C MSD Bundle provide to laboratories in India?

A: The system delivers robust performance for dealers, distributors, exporters, manufacturers, suppliers, traders, and wholesalers by supporting a wide range of applications. Its high accuracy, advanced safety, operational ease, and compatibility with established laboratory infrastructure in India make it an ideal choice for both routine and advanced analyses.
