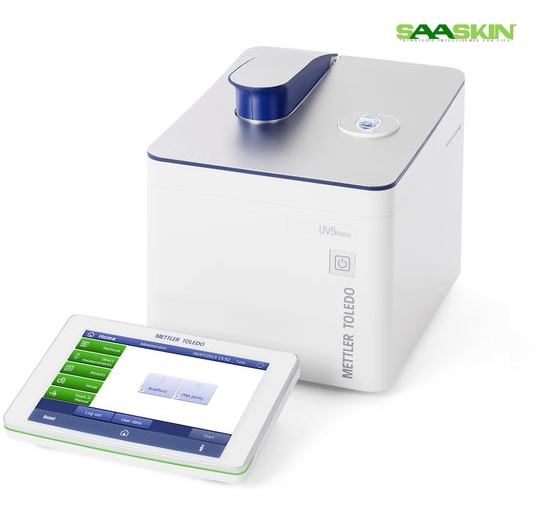

Mettler Toledo Spectrophotometer UV5 Nano

Mettler Toledo Spectrophotometer UV5 Nano

Get a Price/Quote

Product Details:

Voltage 100 240 V AC
Color White
Weight 4.6 kg
Power 30 W
Usage Quantitative analysis of nucleic acids and protein samples
Operate Method Touchscreen interface
Dimension (L*W*H) 196 x 333 x 161 mm
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mettler Toledo Spectrophotometer UV5 Nano Price And Quantity

Mettler Toledo Spectrophotometer UV5 Nano Product Specifications

Color White
Voltage 100 240 V AC
Usage Quantitative analysis of nucleic acids and protein samples
Power 30 W
Weight 4.6 kg
Operate Method Touchscreen interface
Dimension (L*W*H) 196 x 333 x 161 mm
Material Plastic and Metal
Capacity 0.52 L sample volume
Product Type Spectrophotometer
Classification UV-Vis Nano
Application Life sciences, Molecular biology, Biotechnology laboratories

Path Length 0.2 mm and 1 mm selectable
Measurement Time 6 seconds
Minimum Sample Volume 0.5 L
Software UV5 NanoControl
Light Source Xenon flash lamp
Connectivity USB, Ethernet
Spectral Bandwidth 2 nm
Display 7 inch color touchscreen
Absorbance Range 03.0 A
Calibration Automatic wavelength calibration
Detection Method UV absorbance
Operating Humidity 80% maximum relative humidity, non-condensing
Wavelength Range 190 850 nm
Data Storage Internal memory, USB export
Operating Temperature 5C to 40C
Wavelength Accuracy 1 nm

Product Description

Brand Mettler Toledo

Model UV5 Nano

Capacity 190 nm - 1,100 nm

CAT No 30254729

Application Spectroscopy

The UV5Nano UV/Vis spectrophotometer enables concentration and purity determination of nucleic acids and protein samples down to 1 L. Optional automation and 21 CFR part 11 compliance meet the needs of life science and biopharma labs.

Precision and Efficiency in Nucleic Acid & Protein Analysis

The UV5 Nano spectrophotometer streamlines the quantitative analysis of nucleic acids and proteins, combining swift measurement times and minute sample requirements. Laboratories benefit from consistent, accurate readings over a broad spectral range, making it essential for modern life sciences research applications. The device's robust engineering and intelligent software optimize the reliability of every measurement.

User-Friendly Touchscreen Operation

The intuitive 7-inch color touchscreen provides effortless navigation and operation. UV5 Nano's software, UV5 NanoControl, simplifies workflows, automates calibration, and allows quick access to stored or exported data. This interface lowers the learning curve and accelerates routine analysis, enabling laboratory personnel to focus on critical research tasks.

Dependable Connectivity and Storage Solutions

Equipped with both USB and Ethernet connectivity, the UV5 Nano facilitates smooth data transfer and backup. Internal memory and USB export features ensure that valuable experiment results are safely archived and quickly accessible. This connectivity enhances collaboration and supports compliance with documentation requirements.

FAQ's of Mettler Toledo Spectrophotometer UV5 Nano:

Q: How does the UV5 Nano spectrophotometer ensure sample measurement accuracy?

A: The UV5 Nano employs automatic wavelength calibration and a xenon flash lamp for stable, consistent illumination. Its high wavelength accuracy of 1 nm and selectable path lengths provide precise results for nucleic acid and protein quantification.

Q: What is the minimum and maximum sample volume required for analysis?

A: The instrument can accommodate sample volumes as low as 0.5 L and up to 2 L, supporting efficient analysis of precious or limited biological samples.

Q: When is the UV5 Nano best utilized in the laboratory workflow?

A: The UV5 Nano is most effective during fast, routine quantification of DNA, RNA, or proteins, especially when sample volumes are limited. Its rapid measurement time ( 6 seconds) makes it ideal for high-throughput environments.

Q: Where can data from the UV5 Nano be stored and exported?

A: Measurement results can be saved internally within the device's memory and exported via USB or over Ethernet, facilitating secure data management and easy integration with laboratory information systems.

Q: What are the key benefits of using the UV5 Nano for molecular biology applications?

A: Its rapid analysis, accuracy, minimal sample requirement, and simple touchscreen operation accelerate workflows and reduce errors, while its compact design saves valuable bench space in busy labs.

Q: How is the device operated and calibrated?

A: Operation is through the responsive 7-inch color touchscreen, with all key functions accessible via the onboard software. Calibration is automated, ensuring hassle-free maintenance of measurement accuracy.

Q: Who are the typical suppliers or distributors of this spectrophotometer in India?

A: Dealers, manufacturers, exporters, suppliers, wholesalers, and traders specializing in laboratory and scientific equipment distribute the UV5 Nano across India to biotechnology and research organizations.
