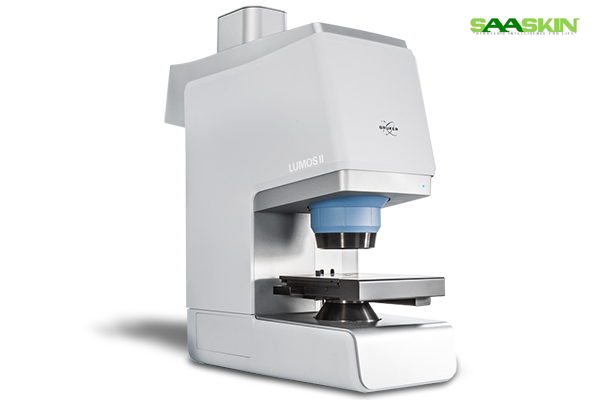

Bruker Lumos II FTIR Microscope Spectrometer

Bruker Lumos II FTIR Microscope Spectrometer

Get a Price/Quote

Product Details:

Measurement Range Spectral range: Mid-IR 4000600 cm standard (optional: extended to NIR/Far-IR)
Power Source 230 V AC, 50/60 Hz (universal power supply supported)
Temperature Range Room temperature operations (typically 15C to 35C for laboratory analyses)
Core Components FTIR Spectrometer, focal plane array (FPA) detector, high-precision XYZ microscope stage, motorized ATR crystal
Frequency Spectral range: Mid-IR (4000 cm to 600 cm) and optional extension to Near- and Far-IR
Voltage 100 240 V AC universal
Model No Lumos II
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Bruker Lumos II FTIR Microscope Spectrometer Price And Quantity

Aperture Control Automated software-controlled variable aperture
Detector Type Standard single-element MCT; optional 8x8 or 32x32 FPA detector for imaging
Data Output Interface USB, Ethernet, HDMI
Microscope Objective 15x IR objective, 15x ATR objective, optional 4x/20x
Illumination LED white light and IR visualization with built-in color camera
Stage Travel Range 75 x 50 mm (X, Y axes)
Safety Features Interlocked sample compartment; auto-shutdown on access
Software OPUS touch interface for acquisition, analysis, and reporting
Optical Configuration Cassegrain objective for transmission and reflection, motorized attenuated total reflection (ATR)
User Level Entry-level to advanced; pre-programmed workflows and customizable methods
Environmental Control Purgeable optics compartment for humidity-sensitive samples
Imaging Capability High-definition, rapid FTIR imaging with up to 4096 spectra acquisition points

Bruker Lumos II FTIR Microscope Spectrometer Product Specifications

Weight Approx. 35 kg (varies with configuration)
Feature Automated focus and aperture, fully motorized, built-in imaging and mapping, user-friendly operation, failsafe auto-attenuation, integrated camera
Automation Grade Fully automated, software-driven measurement and analysis
Display Type Integrated touchscreen and external monitor compatible, color display
Capacity Single-sample and mapping (up to hundreds of samples/regions) capability
Dimension (L*W*H) 610 mm x 477 mm x 530 mm
Accuracy Spectral resolution up to 0.5 cm, high spatial accuracy <5 m
Model No Lumos II
Type FTIR Microscope Spectrometer
Voltage 100 240 V AC universal
Frequency Spectral range: Mid-IR (4000 cm to 600 cm) and optional extension to Near- and Far-IR
Usage Micro-FTIR analysis in advanced materials, forensic investigations, pharmaceuticals, polymers, microcontaminants, and failure analysis
Temperature Range Room temperature operations (typically 15C to 35C for laboratory analyses)
Core Components FTIR Spectrometer, focal plane array (FPA) detector, high-precision XYZ microscope stage, motorized ATR crystal
Power Source 230 V AC, 50/60 Hz (universal power supply supported)
Measurement Range Spectral range: Mid-IR 4000600 cm standard (optional: extended to NIR/Far-IR)
Equipment Materials Robust, chemical-resistant, powder-coated enclosure; glass and metal optical path components

Aperture Control Automated software-controlled variable aperture
Detector Type Standard single-element MCT; optional 8x8 or 32x32 FPA detector for imaging
Data Output Interface USB, Ethernet, HDMI
Microscope Objective 15x IR objective, 15x ATR objective, optional 4x/20x
Illumination LED white light and IR visualization with built-in color camera
Stage Travel Range 75 x 50 mm (X, Y axes)
Safety Features Interlocked sample compartment; auto-shutdown on access
Software OPUS touch interface for acquisition, analysis, and reporting
Optical Configuration Cassegrain objective for transmission and reflection, motorized attenuated total reflection (ATR)
User Level Entry-level to advanced; pre-programmed workflows and customizable methods
Environmental Control Purgeable optics compartment for humidity-sensitive samples
Imaging Capability High-definition, rapid FTIR imaging with up to 4096 spectra acquisition points

Product Description

Brand Bruker

Model LUMOS II

Capacity 40 mm

CAT No LUMOS II

Application Spectroscopy

The LUMOS II is a stand-alone FT-IR microscope and IR laser imaging microscope. It excels in any IR application from failure analysis to material research to life science. It is compact, precise and features ultrafast chemical imaging

Advanced Imaging and Mapping

Experience high-definition, rapid FTIR imaging capabilities with the Bruker Lumos II. The system accommodates single-sample and extensive mapping applications, capturing up to 4096 spectra points with superior spatial resolution. Users benefit from automated focusing, motorized ATR, and software-controlled aperture settings, ensuring robust and reproducible data for even the most challenging microscopic samples.

User-Friendly Interface and Automation

The integrated OPUS touch software provides intuitive acquisition, analysis, and reporting workflows suitable for both novice and expert users. Fully motorized components, including the XYZ stage and ATR crystal, simplify operation and reduce human error. Pre-set methods and customizable parameters deliver flexibility and efficiency during routine and complex micro-FTIR analyses.

Designed for Laboratory Excellence

Constructed with chemical-resistant materials and a powder-coated enclosure, the Lumos II is engineered for demanding laboratory environments. Its purgeable optics compartment enables precise work with humidity-sensitive samples, while safety features such as interlocked sample access and auto-shutdown protect both operators and samples.

FAQ's of Bruker Lumos II FTIR Microscope Spectrometer:

Q: How does the Bruker Lumos II enable advanced FTIR imaging?

A: The Lumos II offers high-definition FTIR imaging by utilizing standard MCT and optional FPA detectors, capturing up to 4096 spectra acquisition points. The motorized stage and automated aperture ensure accurate mapping and analysis of even minute sample regions.

Q: What applications is the Bruker Lumos II FTIR Microscope Spectrometer best suited for?

A: This instrument excels in advanced materials analysis, forensic investigation, pharmaceutical quality control, polymer studies, detection of microcontaminants, and failure analysis, thanks to its precision, versatility, and robust imaging capabilities.

Q: Which user levels can operate the Lumos II, and what software is included?

A: The Lumos II is designed for entry-level users as well as advanced analysts. Its OPUS touch interface supports pre-programmed workflows for routine tasks and customizable methods for complex analyses, ensuring ease of use and flexibility.

Q: When is it necessary to use the purgeable optics compartment?

A: Use the purgeable optics compartment when working with samples or applications sensitive to atmospheric moisture. Purging maintains optimal conditions, improving measurement accuracy for humidity-sensitive analyses.

Q: Where can results from the Lumos II be exported or displayed?

A: Data can be exported via USB, Ethernet, or HDMI for further processing. The instrument's integrated touchscreen and compatibility with external monitors allow flexible, real-time result visualization and reporting in laboratory settings.

Q: What are the benefits of automated features like focus and aperture control?

A: Automated focus and software-controlled aperture minimize operator error, ensure repeatability, and speed up workflow by streamlining setup and measurement processes for high-throughput or routine analyses.

Q: How does the safety system of the Lumos II contribute to laboratory protection?

A: Safety features such as an interlocked sample compartment and automatic shutdown upon access safeguard users from exposure to hazards and maintain instrument integrity during operation.
