Thermo Scientific MAX-iR FTIR Gas Analyzers Thermo Scientific MAX-iR FTIR Gas Analyzers Thermo Scientific MAX-iR FTIR Gas Analyzers
Thermo Scientific MAX-iR FTIR Gas Analyzers
Thermo Scientific MAX-iR FTIR Gas Analyzers Thermo Scientific MAX-iR FTIR Gas Analyzers

Thermo Scientific MAX-iR FTIR Gas Analyzers

Get a Price/Quote

Product Details:

  • Frequency 50/60 Hz
  • Automation Grade Automatic
  • Voltage 100 240V AC
  • Power Source Electric
  • Temperature Range 5C to 40C
  • Model No MAX-iR
  • Core Components FTIR spectrometer, IR source, gas cell, detectors
  • Click to View more
Request to Call Back Send Inquiry
X

Thermo Scientific MAX-iR FTIR Gas Analyzers Price And Quantity

Thermo Scientific MAX-iR FTIR Gas Analyzers Product Specifications

  • Stainless steel, industrial-grade plastics, optical glass
  • 50/60 Hz
  • Touch screen / Remote digital interface
  • Automatic
  • 100 240V AC
  • 600 mm x 600 mm x 250 mm
  • 5C to 40C
  • Electric
  • Continuous Gas Analyzer
  • MAX-iR
  • FTIR spectrometer, IR source, gas cell, detectors
  • Continuous emission monitoring (CEMS), process gas analysis
  • ppm to % volume (dependent on configuration)
  • 2% of reading or better
  • Approx. 40 kg
  • Up to 30 gas components
  • Simultaneous multi-gas measurement, fast response, high sensitivity, non-contact, automatic calibration
  • Rack-mount or wall-mount
  • Analog (4-20 mA), Digital (Ethernet, RS-232/485, USB)
  • 0 95% RH, non-condensing
  • <30 seconds
  • 6 12 months (typical)
  • IP54 / NEMA 12
  • 0.5 to 2 l/min
  • Automatic or manual wizards
  • EN 14181, US EPA standards
  • Fourier Transform Infrared (FTIR) Spectroscopy

Product Description

Brand                         Thermo Fisher Scientific

Model                         MAX-iR

Capacity                    Source Testing

CAT No                      101-0343

Application                Spectroscopy

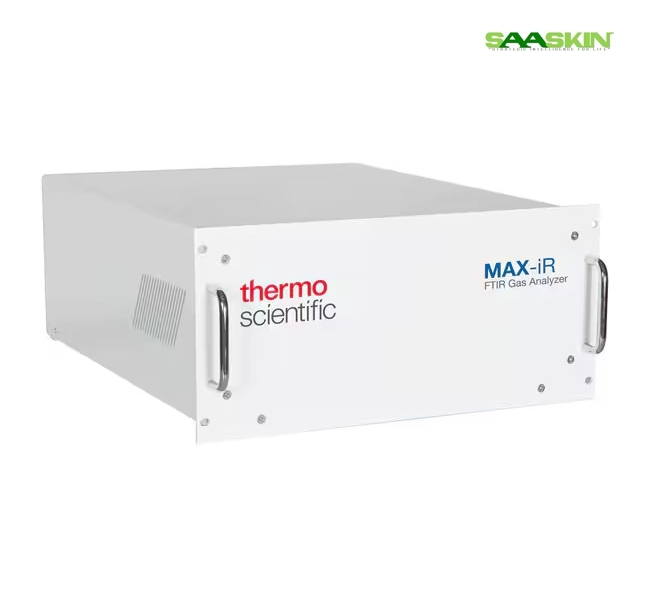

The Thermo Scientific MAX-iR FTIR Gas Analyzer is designed to meet the challenges of in-line process, batch sampling, gas purity/certification, emissions testing, and ambient air monitoring applications. Combined with Thermo Scientific StarBoost Enhanced Optical Technology, the MAX-iR analyzer enables users to achieve single-digit ppb detection limits for many applications. For ultra-high purity gas certification, the detection limits can be further reduced to mid-ppt.




Advanced Detection with FTIR Spectroscopy

The MAX-iR employs Fourier Transform Infrared (FTIR) Spectroscopy, enabling it to accurately measure multiple gases in real time, even at low concentrations. This technology offers high specificity and sensitivity, ideal for continuous emission monitoring and detailed process analysis in industrial environments.


Flexible Installation and Operation

Designed for adaptability, the analyzer supports both rack-mount and wall-mount installations. Its robust build, touch-screen interface, and remote digital access make it suitable for a variety of settings, while the automatic calibration feature ensures consistent accuracy with minimal maintenance intervention.


Reliability and Compliance for Industrial Demands

Built from high-grade materials such as stainless steel and optical glass, the MAX-iR is engineered to withstand harsh conditions. It meets EN 14181 and US EPA standards, making it trusted for regulatory compliance in emission monitoring and industrial gas analysis.

FAQ's of Thermo Scientific MAX-iR FTIR Gas Analyzers:


Q: How does the Thermo Scientific MAX-iR FTIR Gas Analyzer measure gas concentrations?

A: The MAX-iR utilizes Fourier Transform Infrared (FTIR) Spectroscopy, allowing it to analyze the unique infrared absorption characteristics of multiple gases simultaneously. This non-contact method provides rapid and reliable results, supporting continuous monitoring applications.

Q: What types of gases and how many components can be measured with the MAX-iR analyzer?

A: This analyzer can detect and quantify up to 30 different gas components at once, with measurement ranges spanning from ppm to percent volume, depending on the configuration and application requirements.

Q: When is calibration required, and what methods are available?

A: Calibration intervals typically range from every 6 to 12 months, depending on usage and environmental conditions. The device offers both automatic and manual calibration wizards, making the process user-friendly and ensuring sustained data accuracy.

Q: Where can the MAX-iR FTIR Gas Analyzer be installed, and what are the mounting options?

A: The system is designed for flexible installation, supporting both rack-mount and wall-mount formats. Its IP54/NEMA 12 ratings provide environmental protection suitable for various industrial locations.

Q: What is the response time of the analyzer, and how does this benefit process operations?

A: The analyzer delivers results in less than 30 seconds, allowing near real-time monitoring and fast response to changes in process conditions or emission levels. This rapid feedback is crucial for maintaining compliance and process efficiency.

Q: How does the MAX-iR ensure data accessibility and integration with existing systems?

A: The analyzer outputs data via analog (4-20 mA) and multiple digital formats, including Ethernet, RS-232/485, and USB. This makes system integration seamless with existing control, monitoring, or reporting platforms in industrial facilities.
