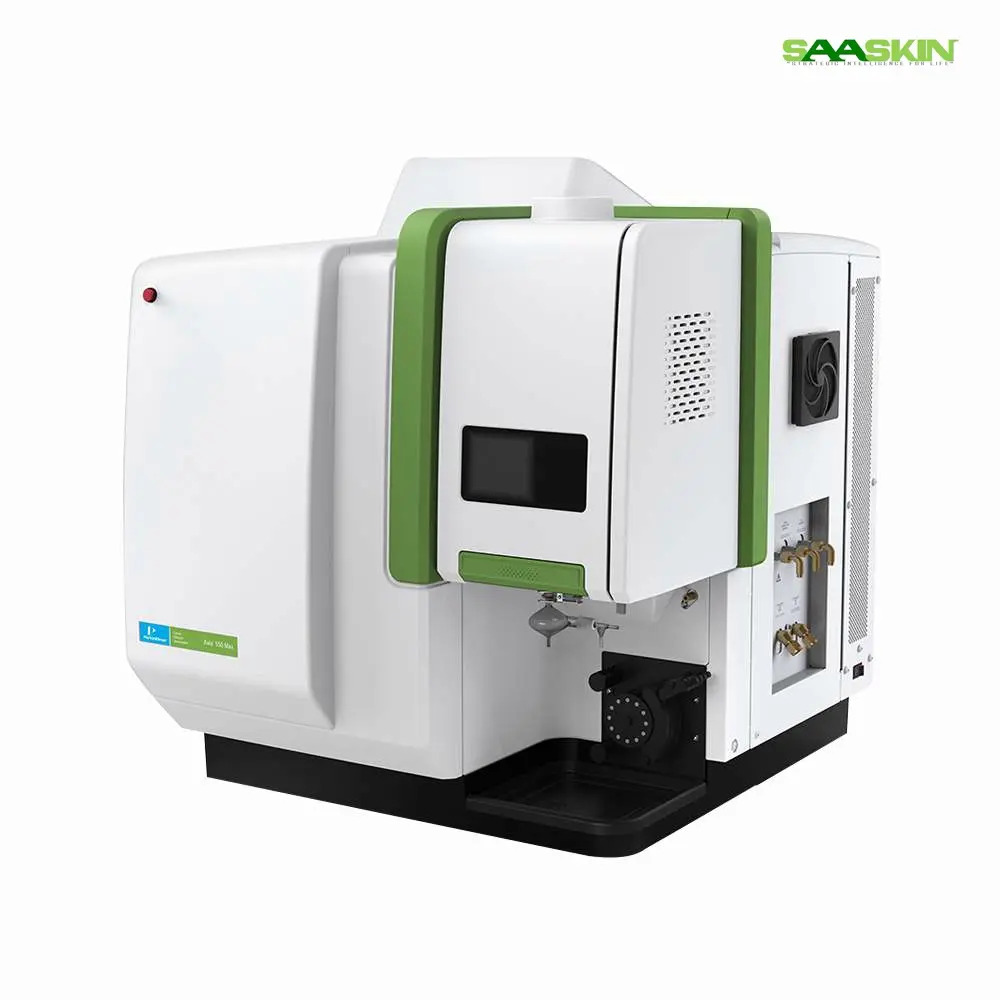

PerkinElmer Avio 550 Max ICP-OES Scott/Cross-Flow Configuration

PerkinElmer Avio 550 Max ICP-OES Scott/Cross-Flow Configuration

Get a Price/Quote

Product Details:

Capacity Simultaneous multi-element analysis
Core Components Plasma torch, Cross-flow nebulizer, Scott spray chamber, spectrometer, CCD detector, RF generator, autosampler compatibility
Measurement Range Low parts-per-billion (ppb) to percent levels
Model No Avio 550 Max Scott/Cross-Flow Configuration
Automation Grade Fully automated
Power Source AC supply
Temperature Range Ambient to 40C operating environment
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer Avio 550 Max ICP-OES Scott/Cross-Flow Configuration Price And Quantity

PerkinElmer Avio 550 Max ICP-OES Scott/Cross-Flow Configuration Product Specifications

Capacity Simultaneous multi-element analysis
Core Components Plasma torch, Cross-flow nebulizer, Scott spray chamber, spectrometer, CCD detector, RF generator, autosampler compatibility
Measurement Range Low parts-per-billion (ppb) to percent levels
Dimension (L*W*H) 102 x 60 x 81 cm
Display Type Integrated color touchscreen interface
Weight Approximately 110 kg
Temperature Range Ambient to 40C operating environment
Feature Dual-view capability, high matrix tolerance, low argon consumption, improved sensitivity, robust performance
Accuracy High elemental accuracy, typically <2% RSD for most elements
Type Inductively Coupled Plasma Optical Emission Spectrometer (ICP-OES)
Voltage 220-240V AC
Frequency 50/60 Hz
Usage Analytical instrumentation for elemental analysis in environmental, clinical, food, industrial, and research laboratories
Model No Avio 550 Max Scott/Cross-Flow Configuration
Automation Grade Fully automated
Equipment Materials High-durability, chemical-resistant components; robust sample introduction system
Power Source AC supply

RF Power Range 800 1500 W (adjustable)
Plasma Gas Flow Rate 8-20 L/min (argon)
Software Syngistix for ICP software suite
Auxiliary Gas Flow Rate 0-2 L/min (argon)
Sample Throughput Up to 60 samples per hour (depending on method)
Compliance Meets ISO 11885, EPA, AOAC requirements
Startup Time <10 minutes
Coolant Air-cooled, no external cooling water required
Data Output USB, LAN, and direct export to LIMS
Nebulizer Gas Flow Rate 0.2-1.5 L/min (argon)
Wavelength Range 165 900 nm
Detection System High-resolution solid-state detector (CCD array)
Sample Introduction System Cross-flow nebulizer with Scott double-pass spray chamber

Product Description

Brand

PerkinElmer

Model

550

Capacity

Double-monochromator optical system

CAT No

N0810004

Application

Spectroscopy

The Avio 550 Max is a compact, fully simultaneous ICP-OES instrument, ideal for labs with high throughput requirements. It utilizes a vertical plasma and is engineered to handle even the most difficult, high-matrix samples without dilution, delivering productivity, performance and faster return on investment. Plus, Syngistix for ICP software provides an intuitive and smart environment with smart monitoring for real-time instrument and sample diagnostics as well as results viewing to easily track sample analysis, quality control, and internal standard performance to guarantee sample accuracy.

Advanced Elemental Analysis Capability

The Avio 550 Max ICP-OES supports low parts-per-billion (ppb) detection to percent-level quantification, meeting the stringent demands of environmental, industrial, and research laboratories. Its high-resolution solid-state CCD detector provides precise, simultaneous multi-element measurements with exceptional accuracy, even in complex sample matrices.

Robust Performance and Efficiency

With a plasma gas flow of 8-20 L/min and low auxiliary and nebulizer gas requirements, the Avio 550 Max ensures reduced argon consumption without compromising on sensitivity. Startup time is under 10 minutes, and air-cooled functionality eliminates the need for external cooling water, supporting a seamless laboratory workflow.

User-Friendly Interface and Automation

Featuring a color touchscreen interface and the Syngistix software suite, daily operations are streamlined for users at any experience level. The system allows direct export to LIMS and supports USB/LAN connectivity, allowing efficient data management. Compatibility with autosamplers further enhances sample processing automation and throughput.

FAQ's of PerkinElmer Avio 550 Max ICP-OES Scott/Cross-Flow Configuration:

Q: How does the Avio 550 Max ICP-OES ensure high accuracy in elemental analysis?

A: The Avio 550 Max uses a high-resolution solid-state CCD array detector and a robust sample introduction system consisting of a cross-flow nebulizer and Scott double-pass spray chamber. This combination ensures high sensitivity, low detection limits, and excellent repeatability, typically achieving less than 2% RSD for most elements.

Q: What types of laboratories benefit most from using the Avio 550 Max Scott/Cross-Flow Configuration?

A: The instrument is ideal for analytical laboratories in environmental, clinical, food, industrial, and academic/research settings. Its flexibility, matrix tolerance, and compliance with ISO 11885, EPA, and AOAC standards make it suitable for multi-sector elemental analysis applications.

Q: When should I choose the cross-flow/Scott configuration for my analyses?

A: This configuration is recommended when handling samples with a high matrix load or variable composition, as it enhances robustness and minimizes sample clogging. It is particularly beneficial for environmental and industrial labs routinely processing diverse or challenging sample types.

Q: Where can data generated by the Avio 550 Max be accessed and exported?

A: Data can be monitored and managed via the integrated color touchscreen interface. Output options include direct export to LIMS, as well as USB and LAN connections, ensuring seamless integration into laboratory informatics systems.

Q: What is the typical sample throughput and how does automation improve productivity?

A: The Avio 550 Max can analyze up to 60 samples per hour, depending on method settings. Full automation, including autosampler support and Syngistix software, speeds up sample handling, reduces operator intervention, and maximizes sample turnaround.

Q: How does the cooling system of the Avio 550 Max differ from other ICP-OES systems?

A: Unlike many ICP-OES instruments that require external cooling water, the Avio 550 Max is fully air-cooled. This eliminates the need for additional water supply and infrastructure, resulting in easier installation, lower maintenance, and enhanced laboratory safety.

Q: What are the operational benefits of using the Syngistix software suite included with the instrument?

A: Syngistix offers intuitive instrument control, automated calibration routines, real-time monitoring, and streamlined data management. It simplifies routine workflows, supports regulatory compliance, and provides comprehensive quality assurance for trace elemental analysis.
