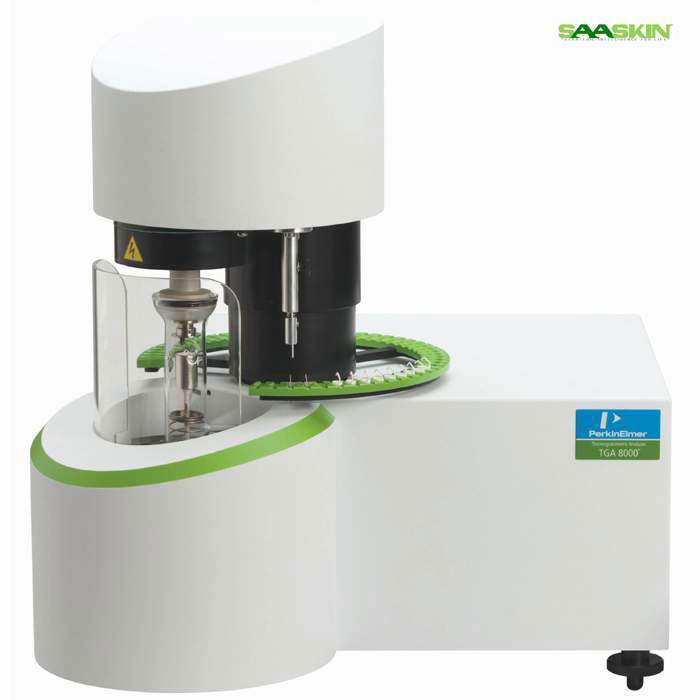

PerkinElmer TGA 8000 With Autosampler

Get a Price/Quote

Product Details:

Feature Fully automated operation, programmable sequences, integrated software
Measurement Range 1 mg to 999 mg
Model No TGA 8000
Accuracy Microgram sensitivity (0.1 g)
Temperature Range Room temperature to 1000C
Power Source AC Mains
Capacity System supports large throughput and multi-sample analysis
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer TGA 8000 With Autosampler Price And Quantity

PerkinElmer TGA 8000 With Autosampler Product Specifications

Accuracy Microgram sensitivity (0.1 g)
Model No TGA 8000
Weight Approx. 50 kg
Measurement Range 1 mg to 999 mg
Feature Fully automated operation, programmable sequences, integrated software
Temperature Range Room temperature to 1000C
Type Thermogravimetric Analyzer (TGA)
Power Source AC Mains
Capacity System supports large throughput and multi-sample analysis
Usage Thermal analysis of materials, weight change measurements
Voltage 120-240 V
Equipment Materials High temperature ceramic furnace, corrosion-resistant components
Core Components Precision balance, Autosampler, Furnace, Control System
Frequency 50/60 Hz
Dimension (L*W*H) 470 mm x 750 mm x 620 mm
Automation Grade Automatic
Display Type Touchscreen color display

Software Compatibility PerkinElmer Pyris software suite
Calibration Automatic calibration routines for temperature and weight
Data Output Format CSV, PDF, Excel
Sample Throughput Batch mode capability with programmable queues
Operating Environment Humidity: 20-80% RH, Temperature: 10°C to 35°C
Connectivity USB, Ethernet, RS232 interfaces
Atmosphere Control Nitrogen, Oxygen, Air, and other gases (programmable flow)
Heating Rate 0.1°C/min to 100°C/min (programmable)
Sample Pan Material Platinum, Ceramic, and Aluminum options
Safety Features Over-temperature protection, Integrated exhaust

Product Description

Brand PerkinElmer

Model 8000

Capacity -20 C - 1200 C

CAT No N5320011

Application Thermal Analyzer

Our TGA 8000 thermogravimetric analyzer gives you complete control over your sample environment and delivers high throughput and reliability, even unattended. Plus, advanced hyphenation technology works beautifully with FT-IR, MS, GC/MS, and other systems for better understanding of evolved gases. In other words, this is complex characterization made simple.

Advanced Automation and Versatility

Engineered for efficiency, the PerkinElmer TGA 8000 incorporates a fully automated sequence and a batch mode autosampler, supporting large throughput and multi-sample analysis. The versatile sample pan materials and programmable gas controls enable applications in research, quality control, and industrial laboratories.

Precision and Reliability in Every Measurement

With microgram accuracy (0.1 g) and automatic calibration routines, the TGA 8000 guarantees dependable results. Corrosion-resistant and high-temperature-tolerant components ensure longevity and performance, even in demanding operational environments.

Seamless Integration and Intuitive Control

The TGA 8000 offers exceptional connectivity through USB, Ethernet, and RS232 ports, facilitating diverse data output formats like CSV, PDF, and Excel. Its integrated PerkinElmer Pyris software suite and responsive color touchscreen simplify operation, data management, and programming.

FAQ's of PerkinElmer TGA 8000 With Autosampler:

Q: How does the autosampler improve workflow on the TGA 8000?

A: The autosampler enables batch mode analysis, allowing multiple samples to be loaded and processed automatically. This boosts laboratory efficiency and sample throughput, making it ideal for high-volume research or QC environments.

Q: What types of samples and atmospheres can the TGA 8000 accommodate?

A: The analyzer supports various sample pan materials-platinum, ceramic, and aluminum-accommodating a wide range of sample types. Atmospheres such as air, nitrogen, oxygen, and others can be programmed for flow rate and sequence, allowing tailored analysis conditions.

Q: When should automatic calibration be performed on the TGA 8000?

A: Automatic calibration routines for temperature and weight are typically performed as recommended by laboratory protocols or whenever high-precision results are required, ensuring accuracy and reliability in every analysis.

Q: Where can data from the TGA 8000 be exported, and in what formats?

A: Data can be exported via USB, Ethernet, or RS232 interfaces in multiple formats, including CSV, PDF, and Excel, enabling easy integration with laboratory information systems and streamlined reporting.

Q: What is the process for operating the TGA 8000 and setting up a new method?

A: Methods can be set up directly on the touchscreen interface or through the Pyris software suite. Users select the desired temperature ramp, atmosphere, sample pan, and automation sequence, then initiate the run-monitoring progress in real-time.

Q: How does the TGA 8000 benefit researchers and industrial users?

A: The TGA 8000 offers precision measurement, robust automation, and flexible operation, making it valuable for researchers and manufacturers needing rapid, reliable thermal analysis and material characterization.

Q: What safety and environmental features are included in the TGA 8000?

A: The system features over-temperature protection, an integrated exhaust for safe operation, and is designed to operate efficiently in environments with humidity levels of 20-80% RH and temperatures between 10C and 35C.
