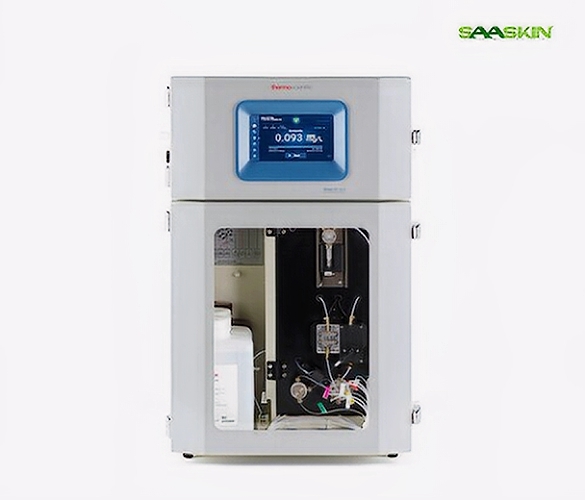

Thermo Scientfic Orion 8010cX Process Ammonia Analyzer

Thermo Scientfic Orion 8010cX Process Ammonia Analyzer

Get a Price/Quote

Product Details:

Temperature Range 5C to 45C
Measurement Range 0.02 to 100 mg/L NH3-N
Power Source AC mains
Accuracy 2% of reading or 0.01 mg/L (whichever is greater)
Feature Automatic calibration, self-cleaning, remote monitoring capability
Frequency 50/60 Hz
Automation Grade Automatic
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Thermo Scientfic Orion 8010cX Process Ammonia Analyzer Price And Quantity

Thermo Scientfic Orion 8010cX Process Ammonia Analyzer Product Specifications

Model No Orion 8010cX
Automation Grade Automatic
Voltage 100240 VAC
Capacity 0.02 to 100 mg/L NH3-N
Core Components Ammonia electrode, peristaltic pump, controller
Feature Automatic calibration, self-cleaning, remote monitoring capability
Usage Continuous process monitoring of ammonia in water and wastewater treatment applications
Frequency 50/60 Hz
Equipment Materials Corrosion-resistant, UV-stable enclosure (fiberglass reinforced polyester)
Dimension (L*W*H) 650 x 500 x 300 mm
Accuracy 2% of reading or 0.01 mg/L (whichever is greater)
Weight Approx. 36 kg (80 lbs)
Temperature Range 5C to 45C
Measurement Range 0.02 to 100 mg/L NH3-N
Power Source AC mains
Display Type Backlit LCD touchscreen
Type Online Ammonia Analyzer

Response Time Typically <10 minutes
Ambient Humidity 5% to 95% RH, non-condensing
Sample Temperature Range 5C to 45C
Output Signal 4-20 mA, MODBUS, relays
Data Logging Internal memory with downloadable results
Mounting Wall or panel mount
Sample Flow Rate 50150 mL/min
Calibration Automatic and manual
IP Rating IP66 water and dust resistant

Product Description

Brand Thermo Fisher Scientific

Model Orion 8010cX

Capacity 5C to 40C

CAT No 8010CX

Application Electrochemistry

Thermo Scientific Orion 8010cX is designed to provide easy to use, accurate, reliable and low maintenance ammonia online monitoring solution.8010cX is based on standard salicylic acid method, method traceable and reagents low toxicity. Professional industrial design, user interface design, modularity design, software function design, anti-interference measurement process design and algorithm enabled 8010cX can be applied in various different applications, to meet regulatory compliance and process control requirements.

Accurate and Rapid Ammonia Monitoring

The Orion 8010cX analyzer provides reliable, real-time ammonia measurements in water and wastewater applications with a quick response time of under 10 minutes. Its automatic calibration and advanced self-cleaning features ensure consistent accuracy and reduced operator intervention, making it ideal for continuous process monitoring.

Engineered for Demanding Environments

With an IP66 rating, corrosion-resistant, UV-stable fiberglass reinforced polyester housing, and operation across a 5C to 45C temperature range, the Orion 8010cX is built to withstand harsh environmental conditions. It performs reliably in ambient humidity from 5% to 95% RH (non-condensing), ensuring longevity in tough industrial settings.

Flexible Integration and Data Management

Offering versatile outputs (4-20 mA, MODBUS, and relays), internal data logging, and a downloadable memory, the Orion 8010cX can be integrated into diverse process control systems. Its backlit LCD touchscreen streamlines user interaction, while remote monitoring capability enables centralized supervision and troubleshooting.

FAQ's of Thermo Scientfic Orion 8010cX Process Ammonia Analyzer:

Q: How is the Thermo Scientific Orion 8010cX Process Ammonia Analyzer installed?

A: The Orion 8010cX can be installed using either wall or panel mounting, suited to your facility's layout. Its corrosion-resistant enclosure and compact dimensions (650 x 500 x 300 mm) make it adaptable to various industrial environments.

Q: What is the measurement range and accuracy of this ammonia analyzer?

A: The Orion 8010cX measures ammonia concentrations from 0.02 to 100 mg/L NH3-N with an accuracy of 2% of reading or 0.01 mg/L, whichever is greater, ensuring precise process control.

Q: When is calibration required, and how is it performed?

A: Calibration can be set to run automatically, minimizing hands-on time, or performed manually as needed. Both methods contribute to accurate, consistent readings and can be scheduled based on process requirements or specific operational practices.

Q: Where can the analyzer be used effectively?

A: It is optimized for continuous process monitoring in water and wastewater treatment plants. Its IP66 water and dust resistance, as well as robust materials, allow reliable operation indoors or outdoors in harsh industrial settings.

Q: What is the process for data logging and accessing measured data?

A: The analyzer stores measurement results in internal memory for later access. Data can be downloaded via integrated interfaces and reviewed for process management or compliance purposes.

Q: How does the self-cleaning feature benefit users?

A: The self-cleaning system reduces routine maintenance by minimizing the build-up of contaminants on critical components. This ensures sustained accuracy, reliable operation, and lowers overall operational effort.
