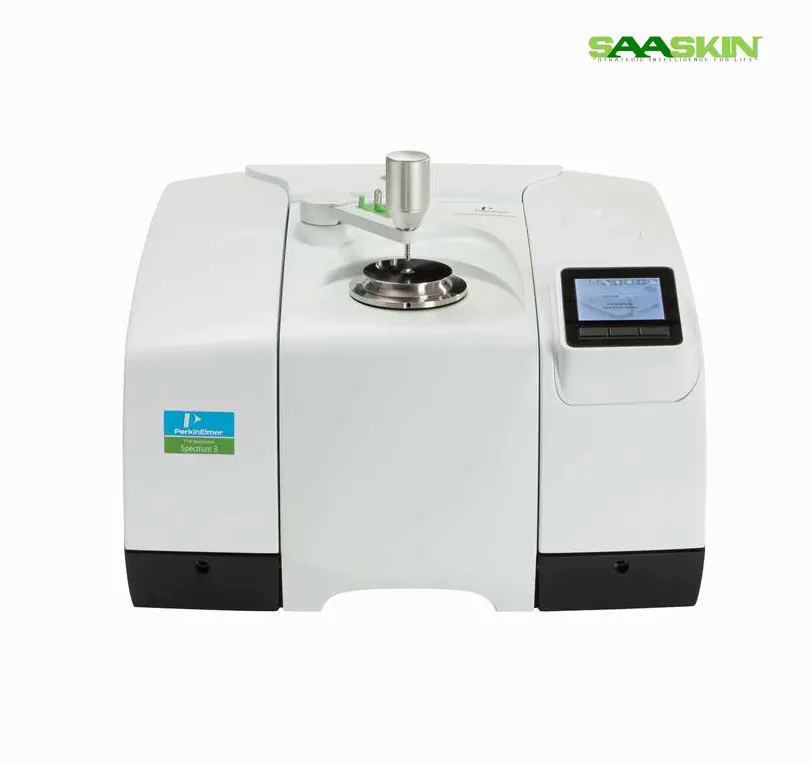

PerkinElmer Spectrum 3 FT-NIR Spectrometer

PerkinElmer Spectrum 3 FT-NIR Spectrometer

Get a Price/Quote

Product Details:

Accuracy Wavenumber accuracy: <0.2 cm
Power Source AC Mains
Feature Modular, flexible configuration; automated multi-range analysis; interlocked sample compartment; high SNR; easy-to-use Spectrum 10 Software
Voltage 100240 V AC
Core Components Interferometer, NIR source, detector (InGaAs standard), software
Measurement Range NIR range: 100004000 cm
Automation Grade Semi-automatic to fully-automatic (depends on accessories and setup)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer Spectrum 3 FT-NIR Spectrometer Price And Quantity

Light Source Tungsten-halogen NIR source
Sample Accessories Integrating sphere, reflection and transmission modules, fiber optic probes (optional)
Environment Operating Temperature 1535 C; 2080% RH (non-condensing)
Spectral Repeatability Better than 0.01% T
Data Output Interface USB and Ethernet connectivity
Software Compatibility Spectrum 10, optional Enhanced Security (ES) compliant with 21 CFR Part 11
Compliance Pharmacopeia, GLP/GMP, 21 CFR Part 11 with software
Resolution Better than 0.5 cm
Laser Wavelength Reference Internal He-Ne laser for wavenumber calibration
Safety Features Interlocked sample compartment, safety certified to CE standards
Optical Path Length Configurable depending on sample accessory
Detector Options Standard: InGaAs; Optional: TE-InGaAs, Si, and others

PerkinElmer Spectrum 3 FT-NIR Spectrometer Product Specifications

Display Type Integrated digital display via connected PC software
Accuracy Wavenumber accuracy: <0.2 cm
Dimension (L*W*H) 560 mm 420 mm 250 mm
Usage Quantitative and qualitative NIR analysis in pharmaceuticals, food, polymers, chemical applications
Measurement Range NIR range: 100004000 cm
Core Components Interferometer, NIR source, detector (InGaAs standard), software
Voltage 100240 V AC
Type Fourier Transform Near-Infrared (FT-NIR) Spectrometer
Feature Modular, flexible configuration; automated multi-range analysis; interlocked sample compartment; high SNR; easy-to-use Spectrum 10 Software
Power Source AC Mains
Weight Approximately 32 kg (70 lbs)
Automation Grade Semi-automatic to fully-automatic (depends on accessories and setup)
Equipment Materials Powder-coated metal housing, optical-grade windows, advanced optics
Temperature Range Ambient to 100 C (with appropriate accessories)
Model No Spectrum 3 FT-NIR
Capacity Single sample or multi-sample with carousel accessories
Frequency 50/60 Hz

Light Source Tungsten-halogen NIR source
Sample Accessories Integrating sphere, reflection and transmission modules, fiber optic probes (optional)
Environment Operating Temperature 1535 C; 2080% RH (non-condensing)
Spectral Repeatability Better than 0.01% T
Data Output Interface USB and Ethernet connectivity
Software Compatibility Spectrum 10, optional Enhanced Security (ES) compliant with 21 CFR Part 11
Compliance Pharmacopeia, GLP/GMP, 21 CFR Part 11 with software
Resolution Better than 0.5 cm
Laser Wavelength Reference Internal He-Ne laser for wavenumber calibration
Safety Features Interlocked sample compartment, safety certified to CE standards
Optical Path Length Configurable depending on sample accessory
Detector Options Standard: InGaAs; Optional: TE-InGaAs, Si, and others

Product Description

Brand PerkinElmer

Model Spectrum 3

Capacity 14,700 -2,000 cm-1

CAT No L1280136

Application Spectroscopy

From routine identification and verification to advanced research applications, you need the performance and flexibility to quickly, confidently, and cost effectively analyze a wide range of samples. The PerkinElmer Spectrum 3 FT-IR spectrometer provides the sampling flexibility and performance in mid, near, and far infrared ranges through a single instrument to advance research and new product development in academia, chemicals, polymers, and pharmaceuticals. The highly configurable platform provides dependable, consistent, and trouble-free operation through years of service.

Superior Analytical Performance

Engineered for precision, the Spectrum 3 FT-NIR achieves a spectral resolution of better than 0.5 cm1 and wavenumber accuracy below 0.2 cm1. This ensures accurate, repeatable results for complex sample types. The internal He-Ne laser delivers consistent calibration, supporting robust data for regulatory environments and routine analyses.

Modular & Flexible Configuration

Customize Spectrum 3 FT-NIR to your laboratory's needs with a wide array of detector choices and sample accessories, from integrating spheres and fiber optic probes to multi-sample carousels. Its modular architecture allows easy adaptation for various sample forms and throughput requirements, from single to automated multi-sample analysis.

Regulatory Compliance & User Safety

Spectrum 3 FT-NIR is designed to meet strict global standards, including 21 CFR Part 11, GLP/GMP, and Pharmacopeia compliance, when used with Spectrum 10 ES software. Safety features, such as an interlocked sample compartment and CE-certified construction, offer peace of mind and simplify adherence to regulatory protocols.

FAQ's of PerkinElmer Spectrum 3 FT-NIR Spectrometer:

Q: How does the Spectrum 3 FT-NIR Spectrometer ensure regulatory compliance for pharmaceutical analysis?

A: Spectrum 3 FT-NIR meets regulatory standards such as 21 CFR Part 11, GLP/GMP, and Pharmacopeia when used with the Enhanced Security (ES) option in Spectrum 10 software. This enables secure, audit-ready data management and instrument control, essential in pharmaceutical quality and compliance environments.

Q: What detector options are available with the Spectrum 3 FT-NIR, and how do I select the right one for my application?

A: The standard detector is InGaAs, with optional upgrades to TE-InGaAs, silicon (Si), and others. Choice depends on your sample's absorbance characteristics and the required sensitivity-InGaAs suits most NIR applications, while TE-InGaAs and Si provide enhanced performance for specific analytical needs.

Q: When should various sample accessories, such as the integrating sphere or fiber optic probes, be used?

A: Integrating spheres are ideal for diffuse reflectance of powders or granules; reflection/transmission modules are used for liquids or solids; and fiber optic probes enable remote or on-site sampling. Selection depends on the sample type and preferred analysis mode for optimal results.

Q: Where can the Spectrum 3 FT-NIR be installed, and what are its environmental requirements?

A: The instrument is designed for laboratory environments with a temperature range of 15-35 C and relative humidity of 20-80% (non-condensing). It requires a suitable benchtop space (560 mm 420 mm 250 mm) with access to AC mains power (100-240 V, 50/60 Hz).

Q: What is the process for switching between single and multi-sample analysis?

A: Spectrum 3 FT-NIR accommodates both single-sample and automated multi-sample workflows. By installing compatible carousel accessories, users can easily upscale from manual to semi-automatic or fully automatic operation. Sample modules are user-friendly, allowing swift changeover with minimal setup adjustments.

Q: How does the system benefit high-throughput laboratories?

A: With automated multi-sample carousels, fast scanning, and robust data handling via Spectrum 10 Software, Spectrum 3 FT-NIR significantly increases sample throughput. Its modular design, quick accessory swapping, and reliable spectral repeatability streamline routine workflows and maximize laboratory productivity.

Q: What are the main applications of the Spectrum 3 FT-NIR Spectrometer?

A: The spectrometer is ideal for quantitative and qualitative NIR analysis in pharmaceuticals, food safety, polymer testing, and chemical production. Its advanced optics, customizable configuration, and comprehensive compliance features make it a valuable asset for research, process monitoring, and quality control.
