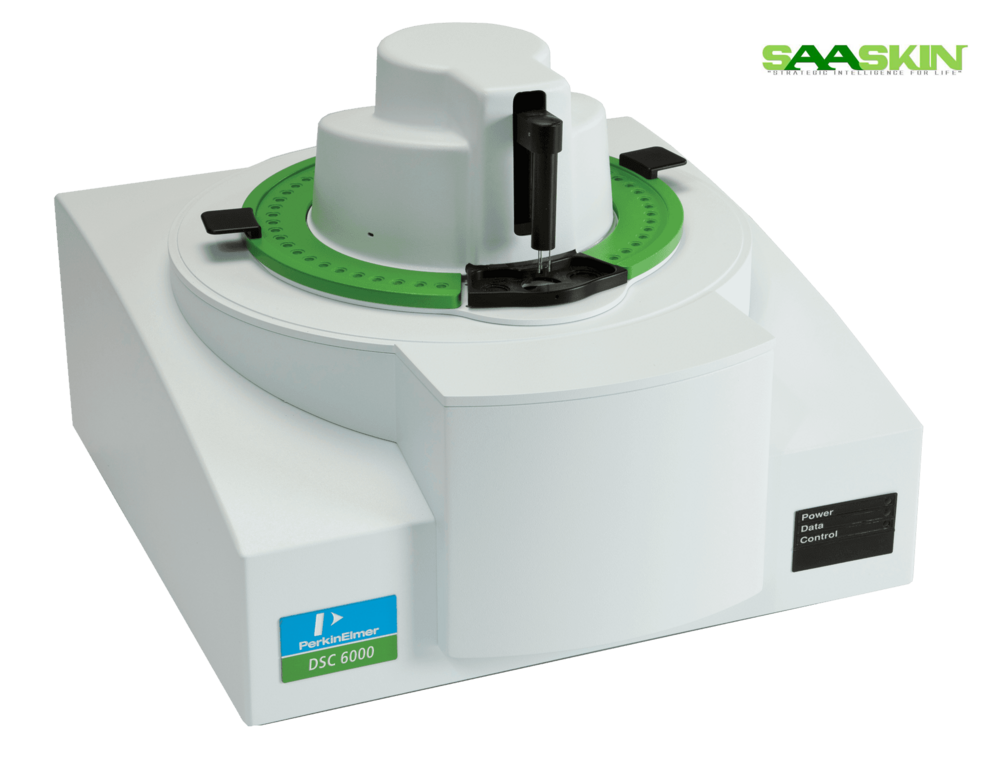

PerkinElmer DSC 6000

Get a Price/Quote

Product Details:

Automation Grade Automatic
Feature Auto-sampler, Integrated Gas Flow Controller, High Sensitivity
Voltage 230 V
Power Source AC Mains Electricity
Accuracy 0.1C (Temperature); 0.01 mW (Heat Flow)
Measurement Range 0.1 mW to 300 mW
Temperature Range -180C to 725C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer DSC 6000 Price And Quantity

PerkinElmer DSC 6000 Product Specifications

Power Source AC Mains Electricity
Usage Thermal Analysis Laboratory, Material Science Research
Equipment Materials Aluminum, Stainless Steel
Voltage 230 V
Feature Auto-sampler, Integrated Gas Flow Controller, High Sensitivity
Display Type LCD Display
Automation Grade Automatic
Type Differential Scanning Calorimeter (DSC)
Frequency 50/60 Hz
Model No DSC 6000
Core Components Sensor, Furnace, Cooling System, Gas Control Unit
Measurement Range 0.1 mW to 300 mW
Weight 38 kg (approx.)
Temperature Range -180C to 725C
Dimension (L*W*H) 45 cm x 35 cm x 23 cm
Accuracy 0.1C (Temperature); 0.01 mW (Heat Flow)

Operating Environment Ambient Temperature: 15°C to 35°C
Sample Capacity 1 sample + 1 reference pan
Data Storage Internal and PC Connectivity via USB
Software PerkinElmer Pyris Software Suite
Interface USB, RS232
Heat Flux Sensor Type High-Precision, Stable Baseline
Cooling Rate Up to 50°C/min (with intercooler)
Calibration Fully Automated Calibration Feature
Heating Rate 0.1°C/min to 100°C/min
Atmosphere Inert or Oxidizing Gas Purge, Programmable

Product Description

Brand PerkinElmer

Model 6000

Capacity -180 C - 450 C

CAT No N5370217

Application Thermal Analyzer

The DSC 6000 gives you all the advantages of the DSC 4000 and more. Designed for research application, it comes with Modulated Temperature DSC (MT-DSC) technology for easier data interpretation and new capabilities for product development.

Precision Thermal Analysis for Advanced Research

The DSC 6000 is engineered for laboratories demanding high sensitivity and accuracy in thermal analysis. Its wide measurement range (0.1 mW to 300 mW) and temperature capability ensure suitability for complex applications, including polymers and pharmaceuticals. The built-in auto-sampler and programmable interface streamline workflow, while internal and external data storage keeps results secure and accessible.

Flexible and User-Friendly Operation

With easy-to-use PerkinElmer Pyris Software Suite, fully automated calibration, and robust connectivity (USB, RS232), the DSC 6000 is designed for smooth integration into any lab environment. Automatic gas flow control simplifies atmosphere changes between inert and oxidizing, while the LCD display and intuitive interface enhance day-to-day usability for researchers.

FAQ's of PerkinElmer DSC 6000:

Q: How does the PerkinElmer DSC 6000 maintain accuracy during thermal analysis?

A: The DSC 6000 utilizes a high-precision heat flux sensor and stable baseline technology, providing temperature accuracy of 0.1C and heat flow accuracy of 0.01 mW. Its fully automated calibration feature ensures reliable performance before every run.

Q: What types of samples and reference materials can be analyzed with the DSC 6000?

A: The instrument can analyze a broad range of materials such as polymers, pharmaceuticals, and metals. It accommodates one sample and one reference pan in each run, providing flexible analysis for both solid and liquid specimens.

Q: When should the automated calibration be performed?

A: Automated calibration can be executed at any time, but it is typically recommended to run calibration prior to a new set of experiments or after maintenance to ensure optimal accuracy in results.

Q: Where can data from the DSC 6000 be stored and accessed?

A: Experimental data can be saved internally within the DSC 6000 and exported to a connected PC via USB interface. The Pyris Software Suite aids in data management, analysis, and report generation, ensuring easy accessibility and archival.

Q: What is the process for setting atmospheric conditions during analysis?

A: The DSC 6000 is equipped with an integrated gas flow controller for automatic switching between inert and oxidizing atmospheres. Users can program the desired gas environment directly via the Pyris software or device interface, providing precise control over experimental conditions.

Q: How is the PerkinElmer DSC 6000 beneficial for thermal analysis laboratories in India?

A: With advanced automation, comprehensive software, and robust performance across a wide temperature range, the DSC 6000 accelerates research productivity. It is available through authorized dealers, distributors, and suppliers in India, ensuring reliable support and local service.
