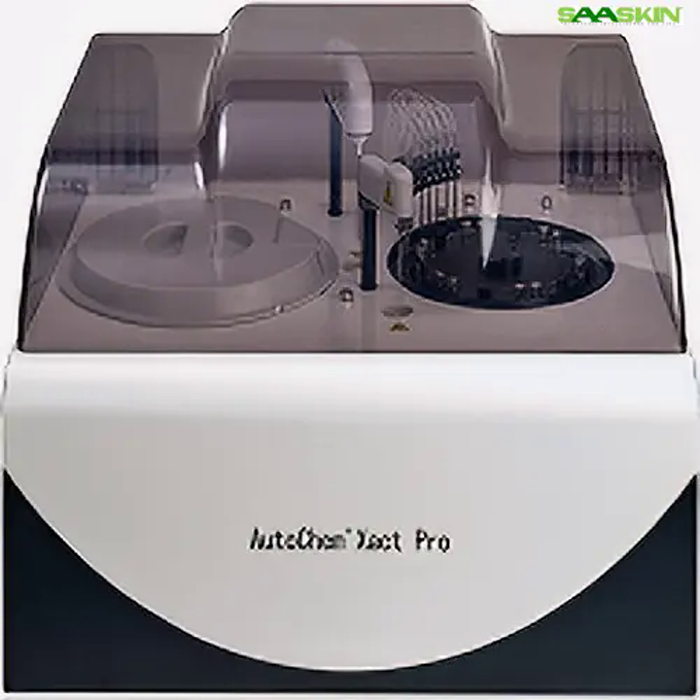

Arkray Autochem Xact Pro Clinical Chemistry Analyzer

Arkray Autochem Xact Pro Clinical Chemistry Analyzer

Get a Price/Quote

Product Details:

Material ABS plastic, Stainless steel components
Condition New
Technology Photometric/End Point and Kinetic analysis
Portable Yes
Disposable No
Wall Mounted No
Light Source Halogen lamp, 12V, 20W
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Arkray Autochem Xact Pro Clinical Chemistry Analyzer Price And Quantity

Sample Loading Aspiration probe
User Interface Intuitive touch screen
Wavelengths 340, 405, 505, 546, 578, 600, 660, 700 nm
Data Storage Capacity 50,000 test results
Sample Volume 2-50 L
Printer Output Compatible with external thermal or dot matrix printer
Reaction Temperature Control 37C 0.1C (incubator assisted)
Cuvette Type Flow cell
Throughput 60 tests per hour
Quality Control 3-level QC management
Sample Capacity Direct aspiration (single sample at a time)
Calibration Linear, multipoint, and non-linear
Reagent Volume 150-1000 L

Arkray Autochem Xact Pro Clinical Chemistry Analyzer Product Specifications

Attributes Easy operation, compact design, reliable performance
Weight Approx. 7.5 kg
Disposable No
Portable Yes
Wall Mounted No
Condition New
Sensor Photodiode array
Software Detail User-friendly onboard software with LIS connectivity
Power Consumption Approx. 60 watts
Technology Photometric/End Point and Kinetic analysis
Light Source Halogen lamp, 12V, 20W
Resolution 800 x 480 pixels
Data Transmission Mode RS232, USB, Ethernet
Material ABS plastic, Stainless steel components
Operating Type Semi-Automatic
Light Halogen lamp
Voltage AC 100-240V, 50/60Hz
Noise Level < 60 dB
Internal Memory Up to 50,000 test results
Color White
Display Type 7 inch color touch screen LCD
Size 420 mm x 320 mm x 170 mm
Usage Clinical biochemistry analysis
Synchronize With LIS/HIS
Real-Time Operation Yes
Power Source Electric
Measurement Open and Closed tube sampling

Sample Loading Aspiration probe
User Interface Intuitive touch screen
Wavelengths 340, 405, 505, 546, 578, 600, 660, 700 nm
Data Storage Capacity 50,000 test results
Sample Volume 2-50 L
Printer Output Compatible with external thermal or dot matrix printer
Reaction Temperature Control 37C 0.1C (incubator assisted)
Cuvette Type Flow cell
Throughput 60 tests per hour
Quality Control 3-level QC management
Sample Capacity Direct aspiration (single sample at a time)
Calibration Linear, multipoint, and non-linear
Reagent Volume 150-1000 L

Product Description

Brand Autochem

Model Xact Pro

Capacity 200 Test/ Hr

CAT No Xact Pro

Application Biochemistry

The Autochem Xact Pro is a Fully Automatic Random Access Clinical Chemistry Analyzer. It is a compact, benchtop analyser with throughput up to 200 tests per hour.

High-Efficiency Clinical Chemistry Testing

The Arkray Autochem Xact Pro enables laboratories to streamline their clinical biochemistry analyses with a throughput of 60 tests per hour. Its real-time operation and direct aspiration design make it ideal for single-sample workflows while maintaining accuracy and speed. The wide range of accessible wavelengths and precise temperature control further enhance its diagnostic capabilities.

Advanced Data Management and Connectivity

Built-in memory can store up to 50,000 test results, and connectivity options-such as RS232, USB, Ethernet, and LIS/HIS synchronization-facilitate seamless data transfer and integration into laboratory information systems. This ensures safe archival and easy access to historical test data for compliance and audit purposes.

User-Friendly Interface and Reliable Performance

The analyzer's intuitive 7-inch color touch screen, user-friendly software, and three-level QC management system allow for easy operation and consistent performance. Its compact form, robust material construction, and low power consumption make it suitable for diverse lab environments.

FAQ's of Arkray Autochem Xact Pro Clinical Chemistry Analyzer:

Q: How do I load a sample into the Arkray Autochem Xact Pro analyzer?

A: Samples are loaded using the aspiration probe for direct aspiration. The analyzer is designed for single-sample operation, making the loading process straightforward for quick, error-free testing.

Q: What benefits does the real-time operation provide in a clinical setting?

A: Real-time operation allows for immediate processing and result retrieval, which is crucial for urgent or routine analyses. This feature helps improve laboratory workflow efficiency and reduces turnaround time.

Q: What kind of calibration and quality control does the analyzer offer?

A: The device supports linear, multipoint, and non-linear calibrations. It also provides a three-level quality control management system to ensure accurate and reliable results for every test run.

Q: When should I use the analyzer's different wavelength options during testing?

A: Different test protocols may require specific wavelengths-from 340 to 700 nm-for optimal detection and analysis of various analytes. The analyzer's wide wavelength range accommodates a broad spectrum of clinical chemistry assays.

Q: Where can the data from the analyzer be stored or transmitted?

A: Test results can be stored internally, with a capacity for 50,000 entries. Data can also be sent to external thermal or dot matrix printers, or transmitted to other systems via RS232, USB, Ethernet, or LIS/HIS interfaces.

Q: What processes are involved in maintaining the analyzer?

A: Regular cleaning, calibration, and quality control checks are essential. The halogen lamp and aspiration probe should also be periodically inspected and maintained for accurate and long-term operation.
