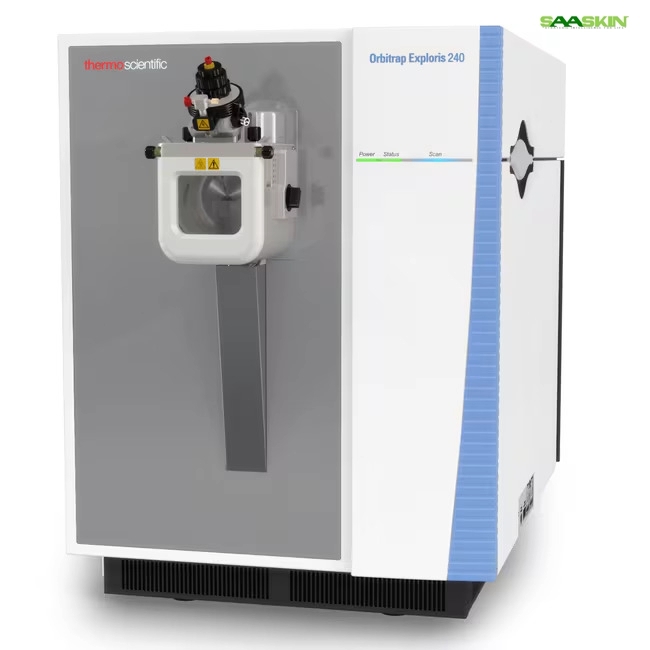

Thermo Scientific Orbitrap Exploris 240 Mass Spectrometer

Thermo Scientific Orbitrap Exploris 240 Mass Spectrometer

Get a Price/Quote

Product Details:

Frequency 50/60 Hz
Model No Orbitrap Exploris 240
Automation Grade Fully Automatic
Measurement Range m/z 406,000
Core Components Orbitrap Mass Analyzer, Vacuum System, Ion Source, Data System
Voltage 220-240 VAC
Temperature Range Ambient (system requires additional source for variable temperature applications)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Thermo Scientific Orbitrap Exploris 240 Mass Spectrometer Price And Quantity

Thermo Scientific Orbitrap Exploris 240 Mass Spectrometer Product Specifications

Automation Grade Fully Automatic
Model No Orbitrap Exploris 240
Usage Proteomics, metabolomics, drug discovery, environmental, clinical research, and more
Frequency 50/60 Hz
Type High-Resolution Mass Spectrometer
Display Type Touchscreen LCD interface and software control via PC
Temperature Range Ambient (system requires additional source for variable temperature applications)
Voltage 220-240 VAC
Core Components Orbitrap Mass Analyzer, Vacuum System, Ion Source, Data System
Measurement Range m/z 406,000
Weight ~124 kg (273 lbs)
Capacity Up to 500 samples per day
Feature High-resolution, accurate-mass (HRAM) analysis; fast polarity switching; superior acquisition speed; automated calibration
Accuracy < 1 ppm RMS mass accuracy (internal calibration)
Dimension (L*W*H) 61.6 cm 84.1 cm 71.5 cm
Power Source AC mains
Equipment Materials Corrosion-resistant coated sheet metal, stainless steel, advanced polymers

Sample Introduction Direct injection, nanoLC, UHPLC compatible
Cooling Requirements External water cooling supported
Data Output Formats RAW, mzML, mzXML, CSV
Vacuum Pump Type Split-flow turbo molecular and rotary vane pump
Operating System Thermo Scientific Xcalibur and Orbitrap Exploris Series software
Mass Resolution Up to 240,000 FWHM at m/z 200
Service & Support Global Thermo Fisher Scientific network support
Software Features Real-time data processing, automated diagnostics, and calibration
Dynamic Range >5 orders of magnitude
Environment 15C30C operating, non-condensing humidity up to 80%
Scan Speed Up to 40 Hz
Ionization Techniques Electrospray ionization (ESI), Atmospheric Pressure Chemical Ionization (APCI) compatible
Noise Level < 60 dB
Compliance Standards CE, RoHS, WEEE, EN/IEC 61010-1
Connectivity Ethernet, USB, Wi-Fi (with optional module)

Product Description

Brand Thermo Fisher Scientific

Model Orbitrap Exploris

Capacity 40 to 6000 m/z

CAT No BRE725535

Application Spectroscopy

The power of leading performance. From small- to large-molecule analyses, the Thermo Scientific Orbitrap Exploris 240 mass spectrometer delivers performance and versatility to drive discovery and identification with the quantitative precision and accuracy to confidently scale up while achieving impact. Operational simplicity with intelligent data acquisition helps you discover your fast track to confident results across a range of applications. Using proven Thermo Scientific Orbitrap mass analyzer technology you can address any challenge and achieve your objectives with excellence.

Exceptional Analytical Performance

Engineered to deliver up to 240,000 FWHM mass resolution at m/z 200 and a scan speed reaching 40 Hz, the Orbitrap Exploris 240 enables intricate and highly confident analysis across various research workflows. Its wide dynamic range and superior mass accuracy enhance both qualitative and quantitative studies, making it suitable for diverse scientific investigations.

Versatile Sample Compatibility

The instrument supports direct injection, nanoLC, and UHPLC techniques, making it adaptable to a range of research demands. Its ion source accepts Electrospray Ionization (ESI) and Atmospheric Pressure Chemical Ionization (APCI), increasing flexibility to analyze a spectrum of compound types from small molecules to large biomolecules.

User-Oriented Software and Automation

Thermo ScientificTM XcaliburTM and Orbitrap Exploris Series software enable real-time data processing, automated diagnostics, and seamless calibration. These software suites are accessible via a touchscreen LCD interface and PC, streamlining data management, acquisition, and instrument maintenance, while supporting common output formats like RAW, mzML, and CSV.

Robust Design and Compliance

Manufactured with corrosion-resistant coated metal, stainless steel, and advanced polymers, the system is built for long-term reliability. Compliance with CE, RoHS, WEEE, and EN/IEC 61010-1 ensures it meets international safety and environmental standards, while a global support network guarantees continued performance.

FAQ's of Thermo Scientific Orbitrap Exploris 240 Mass Spectrometer:

Q: How does the Orbitrap Exploris 240 Mass Spectrometer achieve high mass accuracy and resolution?

A: The Orbitrap Exploris 240 utilizes a proprietary Orbitrap mass analyzer, advanced vacuum system, precise ion optics, and automated calibration routines. Together, these features provide less than 1 ppm RMS mass accuracy (with internal calibration) and resolve up to 240,000 FWHM at m/z 200, even for complex mixtures.

Q: What types of samples and applications can this instrument support?

A: This mass spectrometer is compatible with a wide range of samples and applications, including proteomics, metabolomics, drug discovery, environmental analysis, and clinical research. Its versatility is enhanced by support for ESI, APCI, direct injection, nanoLC, and UHPLC sample introduction methods.

Q: When is external water cooling required during operation?

A: External water cooling is recommended to ensure optimal thermal management, especially during continuous high-throughput analysis or in environments where high ambient temperatures or limited airflow may affect performance stability.

Q: Where can I access data output from the Orbitrap Exploris 240 system?

A: Data can be accessed directly via the integrated touchscreen LCD or through a connected PC using Thermo ScientificTM XcaliburTM software. Outputs are available in RAW, mzML, mzXML, and CSV formats, facilitating integration with various data analysis pipelines.

Q: What process is involved in daily maintenance and calibration?

A: The system features automated diagnostics and calibration routines that can be scheduled or operated on-demand via the software interface. Routine checks, cleaning of ion sources, and periodic replacement of consumables help maintain consistent performance and longevity.

Q: How can the instrument benefit high-throughput laboratories?

A: With the capacity to process up to 500 samples per day, fast polarity switching, automated workflows, and advanced data handling, the Orbitrap Exploris 240 significantly increases productivity and reproducibility, making it ideal for demanding, high-throughput research settings.

Q: What operating environments and conditions are supported?

A: The mass spectrometer operates optimally at ambient temperatures between 15C and 30C with non-condensing humidity up to 80%. It features materials resistant to laboratory chemicals and is designed for reliability in diverse laboratory environments.
