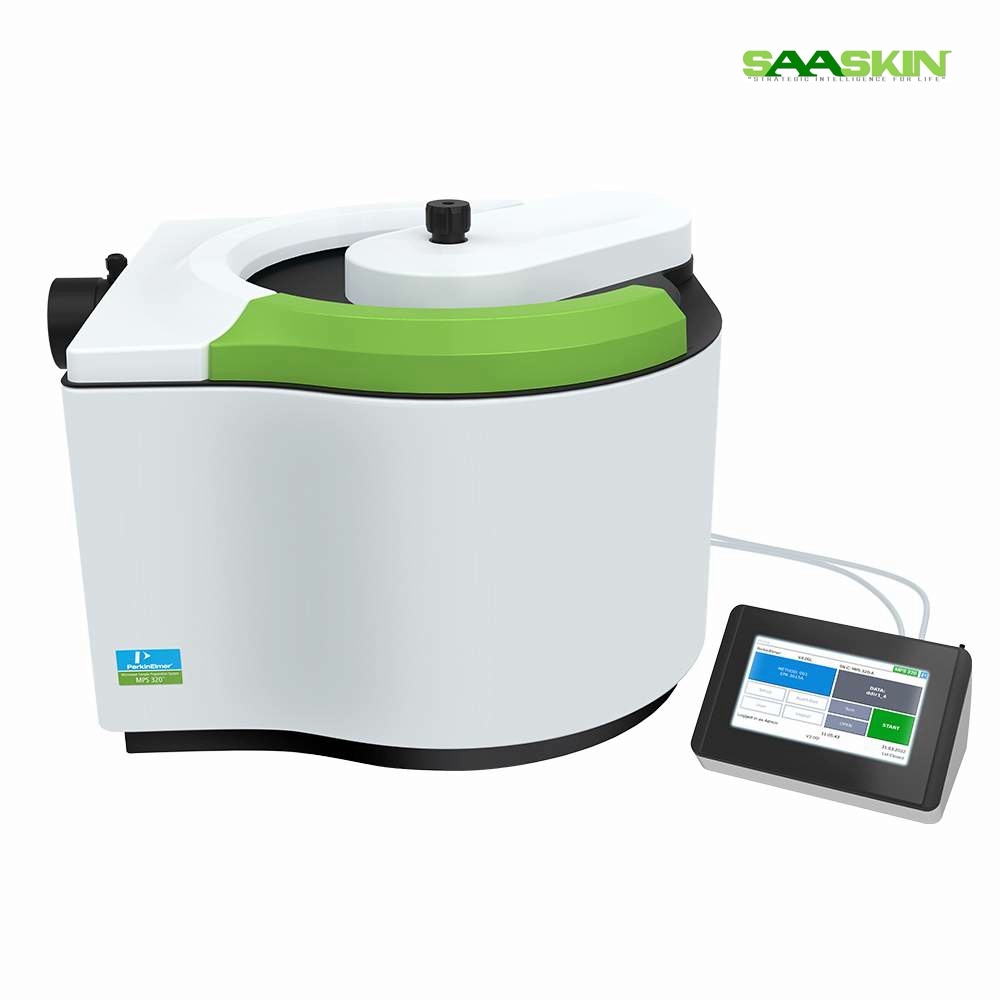

PerkinElmer MPS MR-100/8 320 Microwave Digestion System

PerkinElmer MPS MR-100/8 320 Microwave Digestion System

Get a Price/Quote

Product Details:

Automation Grade Fully Automatic
Voltage 220240 V AC, 50/60 Hz
Model No MPS MR-100/8 320
Capacity 8 vessels x 100 mL (MR-100/8) / 8 vessels x 320 mL (MR-320/8)
Power Source Electric (mains)
Frequency 2.45 GHz
Measurement Range up to 60 bar (pressure), up to 260C (temperature)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer MPS MR-100/8 320 Microwave Digestion System Price And Quantity

PerkinElmer MPS MR-100/8 320 Microwave Digestion System Product Specifications

Automation Grade Fully Automatic
Model No MPS MR-100/8 320
Voltage 220240 V AC, 50/60 Hz
Equipment Materials Acid-resistant, corrosion-proof materials; PTFE, PFA vessel liners
Capacity 8 vessels x 100 mL (MR-100/8) / 8 vessels x 320 mL (MR-320/8)
Display Type Touchscreen LCD display
Core Components Microwave generator (magnetron), digestion vessels, controller, safety system
Frequency 2.45 GHz
Weight Approx. 65 kg
Power Source Electric (mains)
Measurement Range up to 60 bar (pressure), up to 260C (temperature)
Usage Sample digestion for inorganic analytic sample preparation
Type Microwave Digestion System
Feature High throughput, simultaneous multi-sample digestion, high-pressure vessel, software control, memory for methods
Accuracy 1C (temperature), 5 psi (pressure)
Temperature Range Room temperature up to 260C
Dimension (L*W*H) 610 x 520 x 600 mm

Control Interface Integrated touchscreen controller with programmable methods
Application Environmental, food, pharmaceutical and chemical analysis
Microwave Leakage <5 mW/cm² (at 5 cm distance)
Ambient Operating Temperature 10°C to 35°C
Heating Technology Direct microwave heating, non-contact vessel temperature and pressure monitoring
Compliance CE and ISO certified
Memory Storage Stores up to 100 user-defined methods
Maximum Pressure up to 60 bar (870 psi)
Safety Features Multiple sensors, automatic door lock, over-temperature and over-pressure protection
Power Output 1400 W variable
Vessel Material TFM-PTFE liner with glass fiber reinforced PEEK jacket
Exhaust System Integrated vapour exhaust and neutralization system

Product Description

Brand PerkinElmer

Model 320

Capacity 8 vessels

CAT No N3136003

Application Digestion System

The MPS 320 is a reliable and easy-to-operate microwave digestion system for PerkinElmers AA, ICP-OES, and ICP-MS instruments that accommodates a wide range of sample matrices and applications. It provides the choice of closed-vessel digestion, a requirement for working with volatile elements, or unique, easy-to-use and high-throughput auto-venting vessels, which allow digestion to continue when preset pressure is reached. And you can also select from four different rotor configurations depending on your needs. All of this, plus state-of-the-art temperature/pressure control and a variety of unique safety features.

Robust Safety and Reliability

Equipped with multiple safety sensors, automatic door locks, and over-temperature/over-pressure protection, the MPS MR-100/8 320 ensures maximum user and sample security throughout the digestion process. The acid-resistant materials and advanced exhaust system are designed to minimize risks and maintain system integrity.

Versatile and Efficient Performance

With variable microwave power output and simultaneous multi-sample processing, the system enables high-throughput digestion for a range of matrices. Its direct heating technology and non-contact monitoring of vessel temperature and pressure provide accurate, reproducible results across various analytical applications.

User-Friendly Automation and Control

The touchscreen LCD interface offers straightforward programming and method selection, allowing users to store and recall up to 100 protocols. This automation reduces manual effort and enhances operational consistency, making it ideal for laboratories seeking reliability and productivity.

FAQ's of PerkinElmer MPS MR-100/8 320 Microwave Digestion System:

Q: How does the MPS MR-100/8 320 ensure safety during microwave digestion?

A: The system features multiple integrated safety measures, including automatic door lock, multiple temperature and pressure sensors, and dedicated over-temperature and over-pressure protection. These work together with an advanced vapour exhaust and neutralization system, ensuring safe operation even under high-pressure, high-temperature conditions.

Q: What types of samples and applications is this microwave digestion system suitable for?

A: It is designed for sample digestion in inorganic analytic sample preparation, commonly used in environmental, food, pharmaceutical, and chemical analysis. The system handles complex matrices efficiently, making it versatile for various testing requirements.

Q: When should I use the 100 mL versus the 320 mL digestion vessels?

A: The choice between 100 mL and 320 mL vessels depends on your sample volume and digestion needs. The 100 mL vessels are ideal for routine, smaller-scale samples, while the 320 mL vessels accommodate larger or more demanding sample sizes, enhancing throughput for busy laboratories.

Q: Where can the MPS MR-100/8 320 be installed and used?

A: The unit is intended for laboratory environments with ambient operating temperatures between 10C and 35C, a suitable mains power supply (220-240 V AC, 50/60 Hz), and appropriate ventilation. Its robust, acid-resistant construction makes it suitable for demanding analytic laboratories across India and globally.

Q: What is the general process of using this microwave digestion system?

A: Users load samples into the acid-resistant TFM-PTFE and PFA lined vessels, secure the vessels in the system, select or program a method via the touchscreen, and then initiate the automatic digestion cycle. The system monitors and controls all parameters, ensuring precise and repeatable digestion outcomes.

Q: How does this system benefit laboratory workflows?

A: By enabling simultaneous digestion of up to 8 samples with programmable, automated methods, the MPS MR-100/8 320 significantly reduces preparation time and manual intervention. Its consistency and advanced safety features enhance productivity and data reliability.

Q: What compliance and quality standards does the MPS MR-100/8 320 meet?

A: The system is CE and ISO certified, indicating adherence to international safety and quality standards, which is essential for reliable, compliant laboratory operation.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Life Sciences' category

Bruker BEAM - Process FT-NIR Spectrometer Weight : approx. 7.5 kg Core Components : Interferometer, photodetector, NIR light source, optical probe interface Temperature Range : 10C to +50C Accuracy : < 0.1 nm (wavenumber precision) Usage : Continuous process analysis in harsh production environments Feature : Realtime, nondestructive inline measurement; Maintenancefree FTspectrometer core Type : Process FTNIR Spectrometer Dimension (L*W*H) : 192 x 175 x 390 mm Automation Grade : Fully automated operation with remote monitoring Equipment Materials : Industrialgrade stainless steel and ruggedized optical components Model No : BEAM Capacity : High throughput inline monitoring (up to 48 measurements/sec) Frequency : 50/60 Hz compatible system Power Source : 100240 V AC Measurement Range : 12,000 to 4,000 cm (833 to 2,500 nm) Voltage : 100240 V AC, 50/60 Hz Display Type : Digital interface with status indicator LEDs

Send Inquiry

Mettler Toledo C31 StandardLine Checkweigher Weight : Approx. 80 kg Core Components : Load cell, conveyor, motor, display interface Temperature Range : 10C to +40C Accuracy : 0.2 g Usage : Weight verification for packaged products Feature : High accuracy, dynamic weighing, reject system available Type : Inline Checkweigher Dimension (L*W*H) : 1280 mm x 740 mm x 1200 mm Automation Grade : Automatic Equipment Materials : Stainless steel (IPC, IP65 protected) Model No : C31 StandardLine Capacity : Up to 6 kg Frequency : 50/60 Hz Power Source : Electric Measurement Range : 20 g to 6,000 g Voltage : 110/230 V AC Display Type : Color touchscreen HMI

Send Inquiry

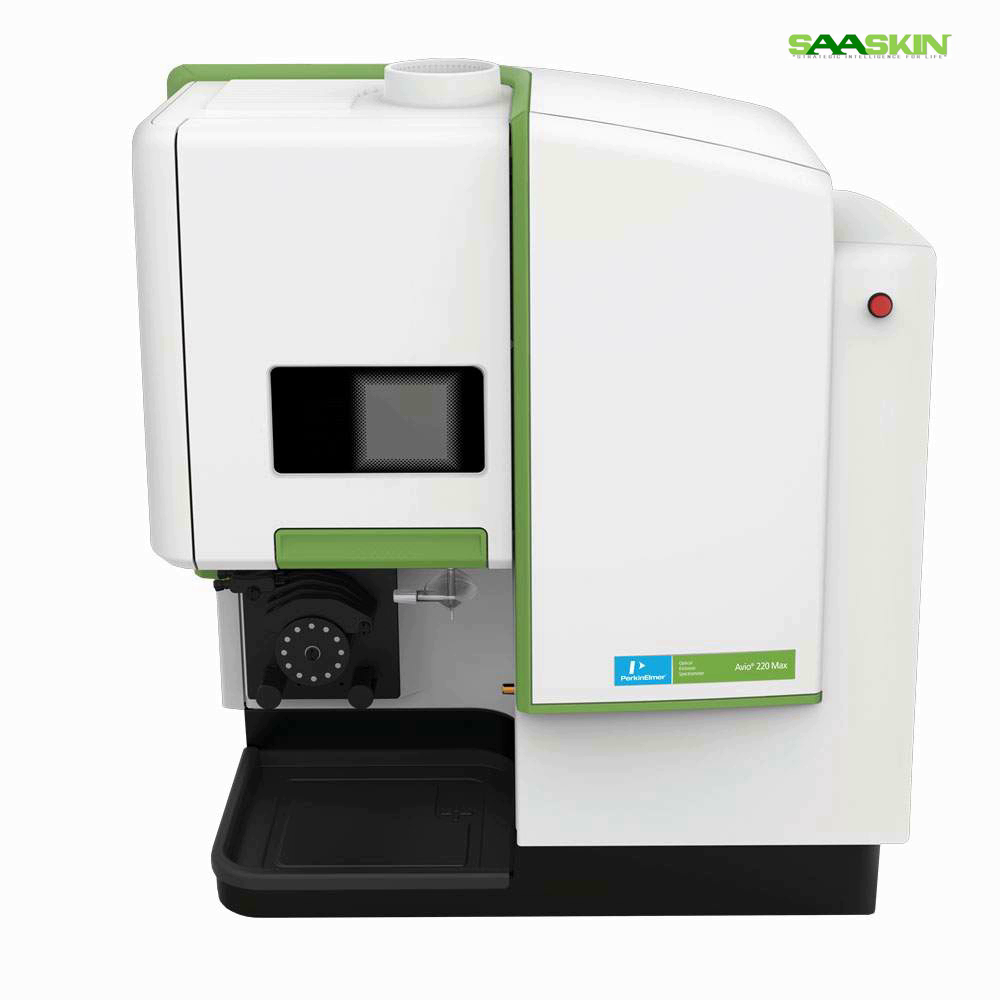

PerkinElmer Avio 220 Max ICP-OES Scott/Cross-Flow Configuration Weight : Approximately 80 kg Core Components : RF Generator, Torch Module, Optical System, Detector, ScottCross Flow Nebulizer Temperature Range : Ambient to 40 C operating temperature Accuracy : Subppm accuracy and precision for elemental detection Usage : Multielemental analysis of a wide range of sample types in environmental, food, industrial, and pharmaceutical laboratories Feature : Scott/CrossFlow configuration for enhanced robustness and versatility, compact design, advanced optics, extended dynamic range Type : Inductively Coupled Plasma Optical Emission Spectrometer (ICPOES) Dimension (L*W*H) : 69 cm 77 cm 61 cm Automation Grade : Fully Automatic Equipment Materials : Corrosionresistant materials, highstrength polymer, stainless steel, quartz torch Model No : Avio 220 Max Scott/CrossFlow Capacity : Fully Automated, High Sample Throughput Frequency : 50/60 Hz Power Source : AC Line Power Measurement Range : up to 104 elements (trace to percent levels) Voltage : 200240 V AC Display Type : Integrated Touchscreen LCD and Computer Interface
